How to choose DIN963 Slotted flat head screws

How to choose DIN963 Slotted flat head screws

Slotted flat head screws executive standard number

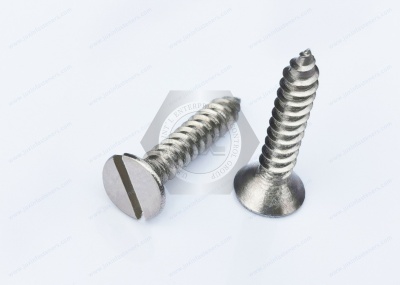

Slotted flat head screws belong to mechanical fasteners, the implementation of the standard DIN963, ASME/ANSI B 18.6.3, ISO2009, according to different materials and specifications; there are various types and grades, Slotted flat head screws are a kind of fasteners with strong fixing force and beautiful appearance. Slotted flat head screws are mostly made of metal and are usually used to install thin metal plates, plastics, light wood, etc. Slotted flat head screws are a kind of threaded fasteners that are commonly used to connect two or more parts. Slotted flathead screws are a type of threaded fastener widely used to connect two or more parts. It usually consists of a threaded rod, a self-locking ring, and a slotted countersunk head. Slotted flathead screws are mainly used in scenarios that require compact assemblies and limited thread exposure, and they are widely used in a variety of applications, including construction, furniture manufacturing, automotive manufacturing, electronics, aerospace, and more. In these fields, Slotted flathead screws play an essential role in meeting the needs of different applications. The commonly used ones are as follows:

1. Steel furniture, such as cabinets, tables, chairs, etc. Slotted flat head screws are widely used in furniture connectors, which not only can strengthen the fixing force of the furniture but also can ensure the appearance of each connection point is neat and beautiful.

2. Electronic products, such as monitors, computers, cell phones, etc. Slotted flat head screws are very common in the assembly process of electronic products, which can make the circuit boards and other components of electronic products fixed together to improve the overall quality.

3. Machinery fields, such as automobiles, ships, airplanes, etc., slotted flat head screws are often used in the assembly of machinery and equipment used to fix various accessories and parts.

4. Construction industry, such as aluminum alloy doors, windows, curtain walls, etc. Slotted flat head screws can make doors, windows, curtain walls, and other aluminum alloys more solid and beautiful.

Slotted flat head screws specifications and dimensions, features

Screws are divided into countersunk head tapping screws, triangular tooth tapping screws, triangular tooth screws, wall panel nails, hand screws, wood screws, machine wood screws, machine screws, fiberboard nails, self-tapping nails, non-standard screws, etc., of which the countersunk head tapping screws, including DIN7972, DIN7982, etc., slotted flat head screws are usually twice the height and width of its diameter, the position of the slots Above the thread, the minimum thickness of 0.4 times the thread diameter, thread specifications for M1.6 ~ M10, performance levels of 4.8, 5.8, A2-50, A7-50, CU2, CU3 and AL4, product grade A slotted countersunk head screws, American Standard slotted flat head screws specifications are mainly M2, M3, M4, M5, M6, M8. This refers to the diameter size of the countersunk head screws. American Standard Countersunk Head Screws are available in lengths of 4, 5, 6, 8, 10, 12, 14, 16, 20, 25, 30, 35, 40, 45, 50 and so on. Measurement of the length of American Standard slotted flat head screws includes the thickness of the countersunk head, which means that the length of American Standard slotted flat head screws is the total length, including the thickness of the head.

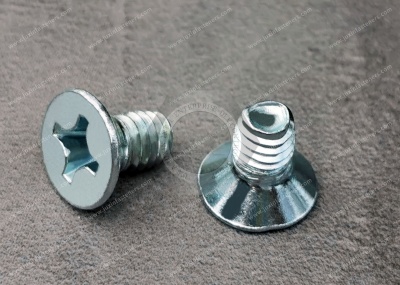

① Some people ask what is the standard size of American Standard 4-40 teeth phillips flat head screws? you can refer to ASME/ANSI B 18.6.3 - 2010 American Standard 4-40 teeth phillips flat head screws length dimensions have a variety of sizes.

You can refer to the relevant standards

https://www.juxinfasteners.com/screws-and-bolts-weld- screws-blots/stainless-steel-slotted-countersunk-head-screw.html.

② Someone mentioned the size of American Standard 3/8 24 teeth Phillips Flat Head Screws. 3/8 in American Standard 3/8 24 teeth Phillips Flat Head Screws means 3/8 inch, about 9.53mm, and the pitch of the screw is about 1.06mm.

③ Some people want to know the American slotted flat head screws8#-32X1/4, #8 stands for what, and #8 stands for a nominal diameter of 0.164 inches of thread. The 32x1/4 on the back is 32 teeth per inch, and the screw length is 1/4 inch. Because of the small size, 0#-12# is used in American threads to represent 13 sizes from 0.060 to 0.216 inches.

Metric specifications and dimensions are as follows:

1. Diameter range: M2.5-M16

2. Length range: 5mm-100mm

3. Height range: 1.5mm-8.8mm

4. Width range: 0.6mm-4.8mm

Slotted flat-head screws have the following features:

ADJUSTABLE LENGTH: slotted flat head screws can adjust the length of the threaded rod as needed to fit parts of different thicknesses.

Solid and durable: the threaded rod is made of high-quality alloy steel material, which makes slotted flat head screws have high strength and wear resistance.

Anti-loosening design: the design of the thread self-locking ring can prevent the thread from loosening and improve the reliability of the connection.

Easy to install: slotted flat head screws adopt a standard thread design, which is easy to install and dismantle and improves working efficiency.

Compact structure: slotted flat head screws have a small structure design, which can realize compact assembly and save space.

Torque for Slotted Flat Head Screws

Torque is an essential indicator of a screw's performance and is generally calculated based on the fastener's grade, material, diameter, pitch, etc. The torque value for Slotted Flat Head Screws is usually indicated on the screw and is generally calculated for Grade 8.8 screws. A torque wrench is recommended for measurement if a more accurate torque value is required.

How to choose Slotted Flat Head Screws

1. Select different grades of slotted countersunk head screws according to the use environment and stress requirements;

2. Select different diameters and lengths according to the needs of the structure;

3. Choose suitable slotted countersunk head screws according to the torque requirements;

4. Choose products produced by manufacturers with reliable quality and guaranteed brands.

5. When reaming, you need to pay attention to the taper, which should be ninety degrees; if you can not guarantee ninety degrees, then the taper, as far as possible, is less than ninety degrees.

6. If the thickness of the ordered item is thinner than the head of the screw, it is recommended to choose countersunk head screws with smaller specifications or make the reaming hole smaller.

7. If you need to use more than one Slotted Flat Head Screw on the part, then avoid drilling crookedly so as not to look unattractive on the outside after mating. I hope this can provide you with some reference when choosing Slotted Flat Head Screws.
