Electrical cabinets with component mounting plates secured by rivet nuts

Electrical cabinets with component mounting plates secured by rivet nuts

Rivet nut, widely used in automobiles, aviation, instruments, furniture, decoration and other electromechanical and light industrial products on the assembly, in order to solve the sheet metal, thin tube welding nut easy to melt, tapping the internal threads are easy to slip the teeth and other shortcomings of the development, it does not need to tap the internal threads, do not need to weld the nut, riveting solid high efficiency, easy to use, for electrical cabinets used rivet nut is also very much, are usually on the components of the electrical cabinets Mounting plate for fixed, for the installation of rivet nut, traditionally set up in the cabinet connection hole, will be riveted nut inserted in which to be specified, Specifiedmade of sheet metal cabinet in the use of the process of electrical components by the influence of the temperature tends to be higher, subject to thermal expansion is serious, and the rivet nut after the thickness of the metal, the material hardness of the material is high, subject to thermal expansion of the situation is slight, which will lead to rivet nut and the cabinet between the connection is easy to loosen and fall off. The connection between the rivet nut and the cabinet is easy to relax and falls, affecting the connection's stability; for this reason, the utility model proposes a kind of electrical cabinet utilizing the pull rivet nut to fix the component mounting plate for solving the above problem.

Cabinet industrial connection solutions:The shell and partition of the switchgear cabinet are made of zinc-aluminum-deposited steel plate; the whole cabinet not only has high precision, corrosion, and oxidation resistance but also has high mechanical strength and beautiful appearance; the cabinet adopts an assembled structure, which is linked by rivet nuts and high-strength bolts, so the assembled switchgear cabinet can keep the unity of the dimensions.

The switchgear cabinet is divided into a handcart room, busbar room, cable room, and relay instrumentation room by the partition, and each unit is well grounded.

Steel Twist-Resistant Rivet Nuts: These are about twice as strong as aluminum rivet nuts and zinc yellow-chromate plated for corrosion resistance. A ribbed body holds the nut in place, so it won't turn when tightening a screw. Also known as blind inserts, they can be installed when you can access only one side of the material. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

Stainless Steel Twist-Resistant Rivet Nuts: Our most corrosion-resistant twist-resistant rivet nuts stand up to chemicals. A ribbed body holds the nut in place, so it won't turn when tightening a screw. Also known as blind inserts, they can be installed when you can access only one side of the material. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

Aluminum Twist-Resistant Rivet Nuts: These rivet nuts are one-third the weight of steel rivet nuts and are mildly corrosion-resistant. A ribbed body holds the nut in place, so it won't turn when tightening a screw. Also known as blind inserts, they can be installed when you can access only one side of the material. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

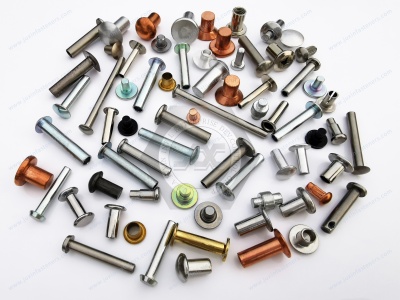

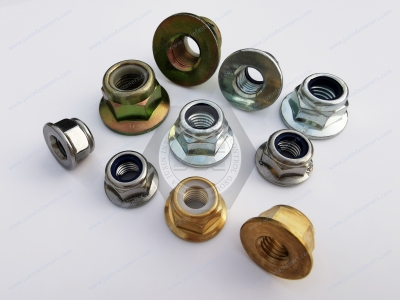

Connecting fasteners for switchgear cabinet busbar compartments:The busbar compartment is arranged at the upper back of the switchgear cabinet to install and set the three-phase high-voltage AC busbars and connect to the static contacts through the branch busbars. All busbars are molded with insulating sleeves. When the busbar crosses the partition of the switchgear cabinet, it is fixed with a busbar casing, which requires blind rivet nuts, nylon screws and nuts, plastic rivets, Cage nuts, pull rivets, high-strength screws and bolts, and so on. If there is an internal fault arc, it can limit the accident spread to neighboring cabinets and can protect the mechanical strength of the busbar.

Switchgear Trolley (Circuit Breaker) Room Application:Specific guide rails are installed in the breaker room so the breaker handcart can slide and work inside. The handcart can move between the working position and the test position. The partition (flap) for the static contacts is mounted on the rear wall of the trolley compartment. During the movement of the handcart from the test position to the working position, the spacer automatically opens, and the handcart moving in the opposite direction is ultimately compounded, thus guaranteeing that the operator does not touch the electrically charged body.

Electrical Switchgear Cabinet C-Cable Room:The cable room can be installed with a current transformer, earthing switch, lightning arrester (over-voltage protector), cables, and other ancillary equipment and is equipped with a removable aluminum plate with open slits at the bottom to ensure the convenience of on-site construction.

Electrical Switchgear Cabinet D-Relay Instrumentation Room:The panel of the relay room is installed with microcomputer protection device, operation handle, protection outlet pressure plate, meter, status indicator (or status display), etc.; inside the relay room, there are terminal rows, microcomputer protection control circuit DC power switch, microcomputer protection working DC power supply, energy storage motor working power switch (DC or AC), as well as special requirements of the secondary equipment, connecting the application to the nylon wire fixing seat The connection is applied to nylon wire fixing seat, wiring fixing seat, carbon steel screws and nuts, pull rivets, zip ties and so on.
