Conical spring washers working principle and industrial application solutions

The definition of conical spring washers

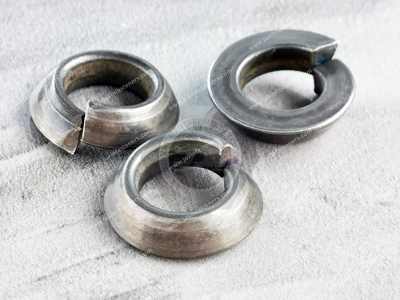

Conical spring washers have a unique shape of the spring; the shape is similar to the upper and lower caliber of different cones; because of their distinctive shape, they can play a specific role in the actual work of vibration damping, buffering, sound damping, etc., are widely used in mechanical devices. The structure of conical spring washers mainly consists of upper and lower conical springs, inner bowl surface, outer bowl surface, spring coil, and upper and lower end caps. The material of conical spring washers is mainly high-quality spring steel, after heat treatment and other multi-channel refined processing, with high strength, pressure resistance, corrosion resistance, and other characteristics.

The working principle of conical spring washers

The working principle of the conical spring washer is mainly the use of its elastic deformation to achieve vibration damping, buffering, noise reduction, and other roles. In the installation process, conical spring washers are usually installed between two parallel surfaces to form a certain pressure and elastic deformation. When the device is subjected to external forces, vibration, vibration, etc., conical spring washers will be based on its unique shape and the elastic properties of the material to produce a certain degree of elastic deformation, thereby absorbing, transferring, and dispersing the external forces to achieve vibration damping, buffering, sound damping, and other functions. Conical spring washers have the characteristics of easy installation, high elasticity, large bearing capacity, etc., which can better adapt to the different needs of the mechanical operation status. At the same time, it is also suitable for many emergency repair and modification work, reducing the wear and damage to mechanical parts.

The elastic deformation of conical spring washers is related to the material, external force, shape, and other factors, which must be selected and installed according to the specific conditions in actual use.

The application of conical spring washers

Conical spring washers, due to their unique shape and material properties, can play different roles in various parts of the mechanical device: vibration damping, cushioning, sound damping, and so on. Among them, common application scenarios include:

1. Engine suspension: Conical spring washers are usually used to reduce vibration, noise undulation, and other factors affecting the regular operation of automobile engines, generators, and other large-scale equipment.

2. Machine and equipment vibration damping: conical spring washers are also commonly used in mechanical equipment vibration damping, such as machine tools, vibrating screens, conveyors, conveyor belts, and other equipment, and can play a role in reducing vibration, noise, and so on.

3. Electrical equipment vibration damping: conical spring washers can be used for vibration damping and fixed, such as high-voltage cable brackets, transformers, connectors, etc.

Conical spring washers are widely used in machinery, aviation, automotive, military, and other fields. In aviation, conical spring washers can reduce the vibration of the fuselage, thus making the airplane smoother and safer. In the automotive field, it can play the role of vibration damping, noise reduction, preventing nuts from loosening, and so on. Industrial machinery has many applications, such as significant tools, punching, lifting equipment, and other fields. Conical spring washers have a wide range of applications as an essential mechanical fastening accessory that reduces vibration and loosening in mechanical movement. In these fields, conical spring washers will continue to fulfill their excellent performance and high efficiency to help industrial progress. Conical spring washers are an efficient elastic element that can absorb transfer thdispersetic deformation. They are widely used in machinery manufacturing, power equipment, transportation, and other fields.
