JX-SA type axial precision lock nut

Body material: 42CrMo/forgings

Inquire Now Next Product Download

Product Specification

Body material: 42CrMo/forgings

Surface treatment: sandblasted black

Tempering hardness: 28-32HRC

Specification: M12-M300

Thread accuracy: ISO 4H precision turning

Plane deflection: 0.002-0.005mm

Screw grade: 12.9 grade

Locking metal: phosphor bronze

JX-SA type axial precision locking nut locking screw locking direction for the three-point axial locking, thickness, and price and F-type tooth belly locking nut the same. Suitable for design or assembly restrictions.

It is suitable for applications where other products cannot be used.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 141-142 Page See more product details.

Product Packaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

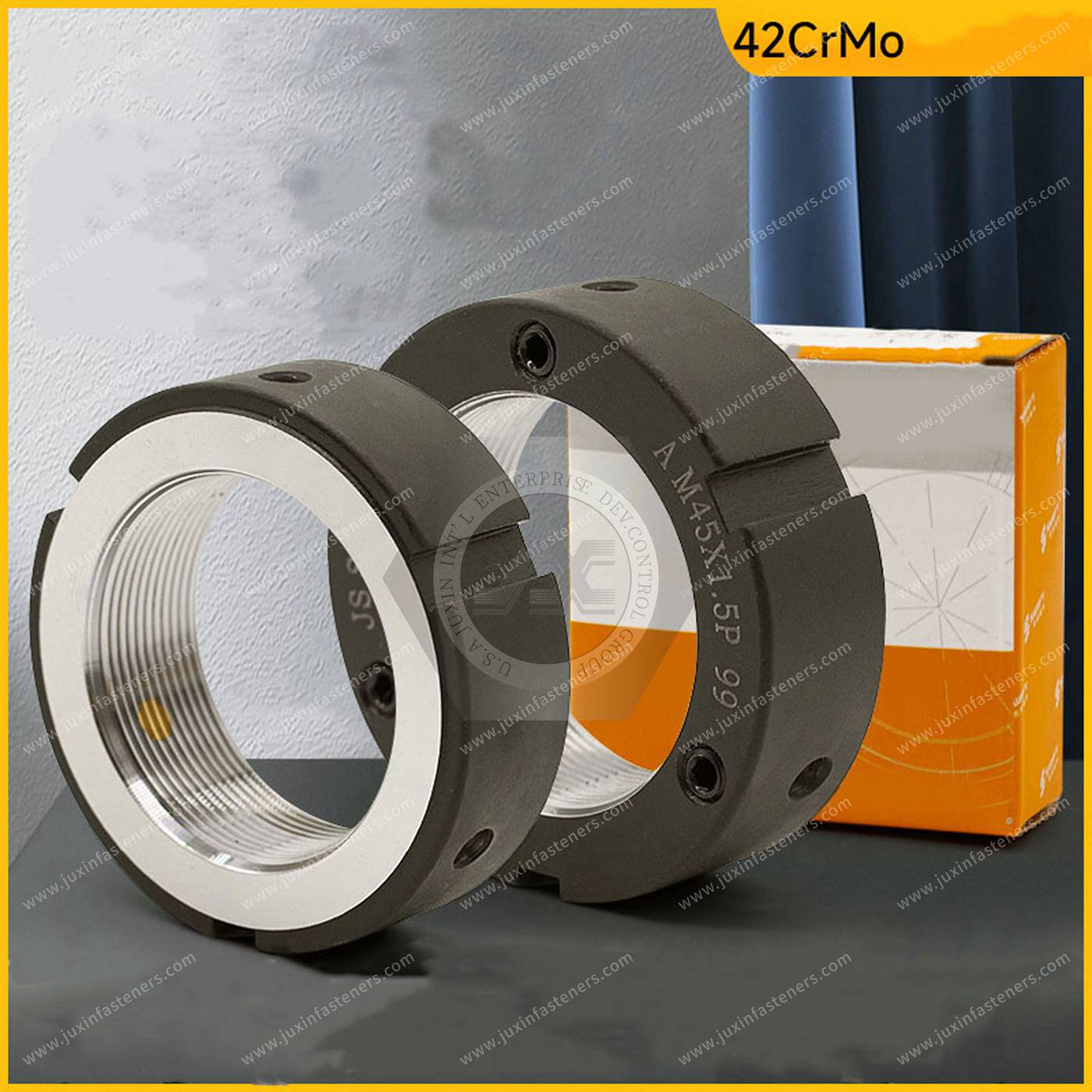

JX-SA type axial precision lock nut
