Metal Flange Lock Nuts, All-metal Prevailing Torque Hexagon Nuts

JX-Q375 QC/T 609-1999 Plate welding nut

Material: Stainless steel, Carbon steel, carbon content is not more than 0.25%, weldable steel, free-cutting steel is not allowed.

Standard: Q375

Share:

Product Specification

Name: Low-Profile Narrow-Base Weld Nuts

Material: Stainless steel, Carbon steel, carbon content is not more than 0.25%, weldable steel, free-cutting steel is not allowed.

Size: 6-32, 8-32, 10-24, 10-32, 1/4-20", 5/16-18", 3/8-16", 1/2-13".M3, M4, M5, M6, M8, M10, M12

Use these weld nuts in low-clearance applications and in tight spaces where round-base weld nuts won't fit. Weld them to flat and uneven uncoated steel surfaces for a strong permanent hold.

1: The difference in welding point height (F) on each nut cannot exceed 0.15mm.

2: The radius of the arc on the periphery of each flange is about A/2.


Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 145-146 Page See more product details.

Product Packaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

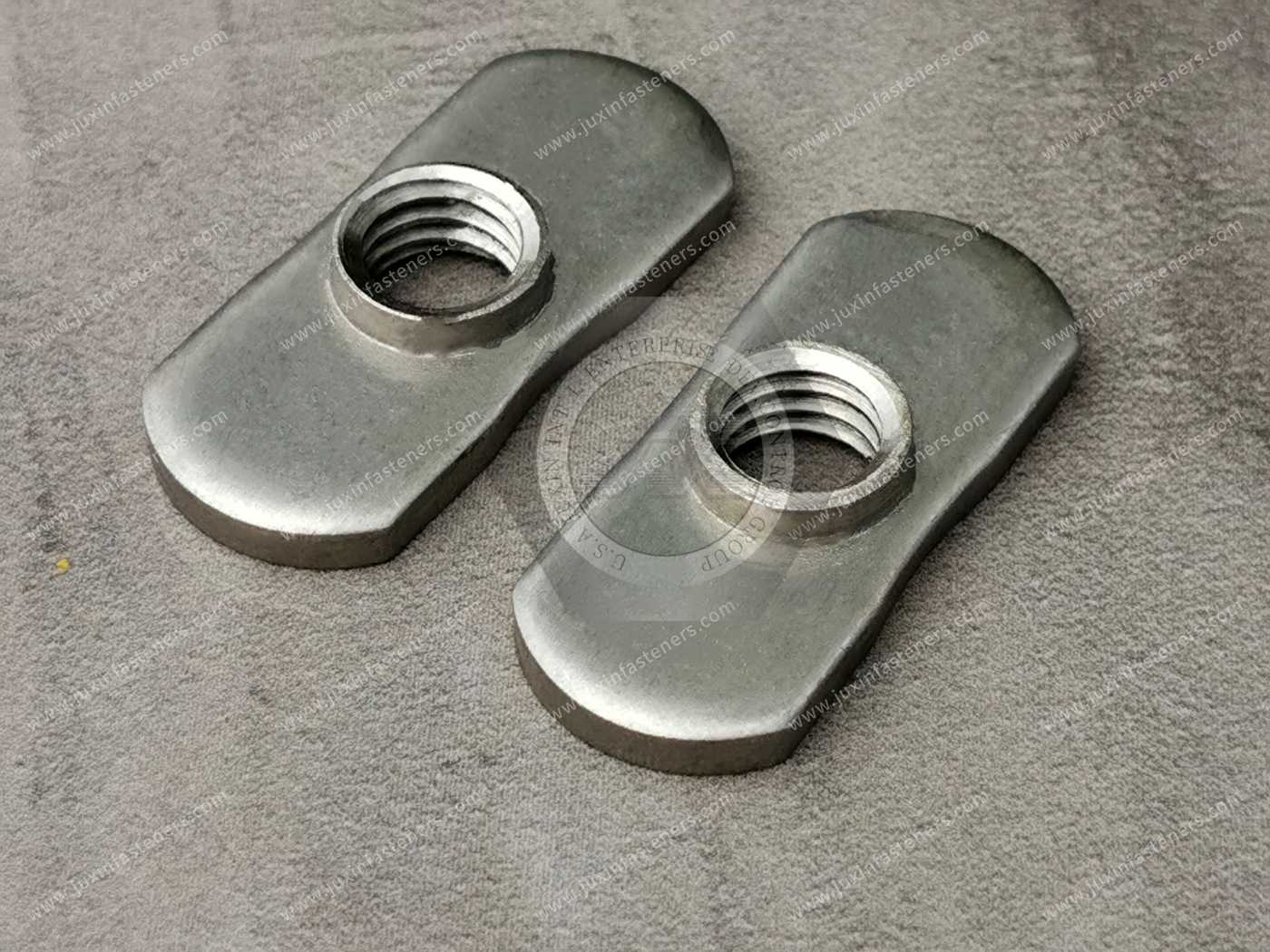

JX-Q375 QC/T 609-1999 Plate welding nut


JX-Q375 QC/T 609-1999 Plate welding nut
