Metal Flange Lock Nuts, All-metal Prevailing Torque Hexagon Nuts

304 stainless steel inner wire pipe cap plug plug head stuffy head pipe plug cap(Cap pipe)

Material: Stainless steel SUS304, SUS201, SUS316, Copper, Steel

Share:

Product Specification

Name: Stainless Steel Threaded Pipe and Pipe Fittings&Brass and Bronze Pipe and Pipe Fittings&Iron and Steel Threaded Pipe and Pipe Fittings

Size: DN6(1/8"), DN8(1/4"), DN10(3/8"), DN15(1/2"), DN20(3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2"), DN65(2-1/2"), DN82(3"), DN100(1-1/2")

Material: Stainless steel SUS304, SUS201, SUS316, Copper, Steel

Use these fittings for low-pressure applications in noncorrosive environments.


1. For Use With Air, Steam, Oil, Water, Natural Gas

Pressure Class: 150

Specifications Met:

NPT: ASME B1.20.1, ASME B16.3

BSPT: DIN EN 10226

Pipe Nipples and Pipe: Use Schedule 40 steel


2. For Use With Air, Natural Gas, Oil, Steam, Water

Pressure Class: 150

Fabrication: Heat Treated

Specifications Met:

NPT: ANSI/MSS SP-114, ASTM A351

BSPT: ANSI/MSS SP-114

Pipe Nipples and Pipe: Use Schedule 40 stainless steel

Flanges: Use Class 150 stainless steel


3. Use these fittings in low-pressure flow applications. They have good corrosion resistance. Fittings rated for use with drinking water meet NSF/ANSI 61 safety standards.For Use With:

NPT: Air, Drinking Water, Natural Gas, Oil

BSPT: Air, Natural Gas, Oil, Steam, Water

Pressure Class: 125

Specifications Met:

NPT: ASME B1.20.1, ASME B16.15, NSF/ANSI 61

BSPT: ASME B16.15, ASME BS21, ASTM B584

Pipe Nipples and Pipe: Use Schedule 40 brass

Flanges:

NPT: Use Class 150 brass

BSPT: Use Class 150 bronze

Product Packaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*96CM, or as your requirement.

Product Pictures

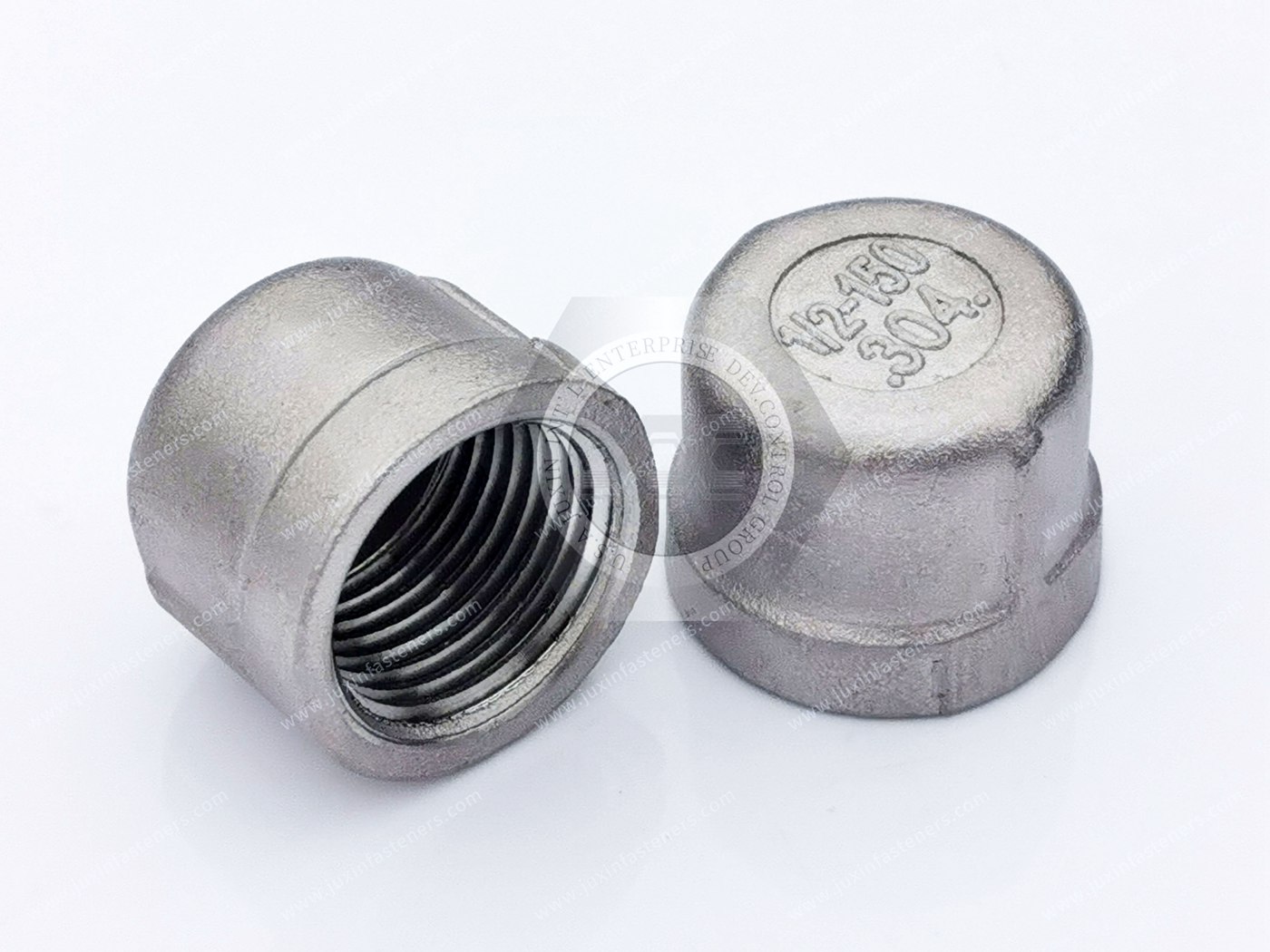

304 stainless steel inner wire pipe cap plug plug head stuffy head pipe plug cap(Cap pipe)
