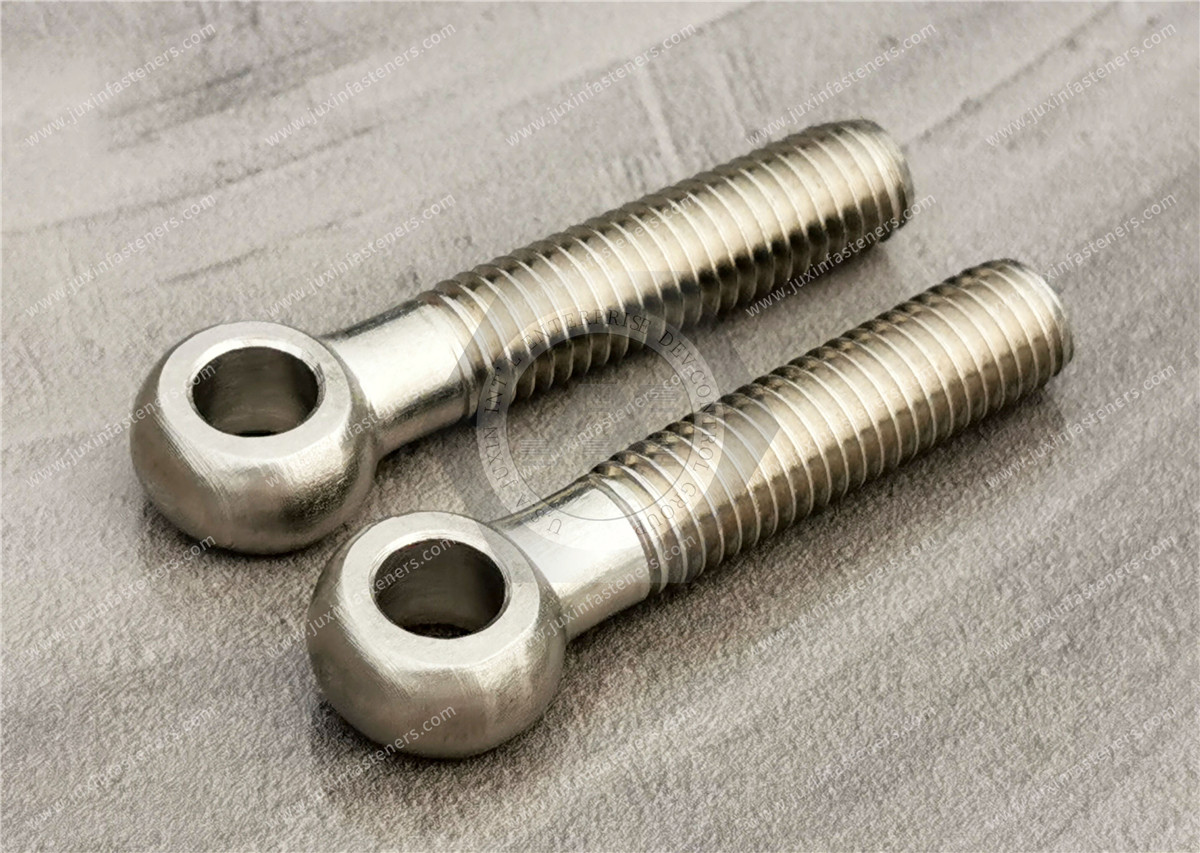

Stainless steel Eye Blots

Standard:Q190,GB/T798,DIN444.The inner ring is usually smaller than the larger ring and there are differences in the ring sizes as well. The stainless steel eye bolt with ring is useful in applications where the load direction changes. The directional change does not stress the bolt in different directions to bend. The stainless steel eye bolt screw is used in places where tightening with nuts is not possible, or necessary. There are different other types such as lag bolts, plain ring bolts, and others. As one of the leading ss eye bolts suppliers we produce these in different materials.

Name: Corrosion-Resistant Fully Threaded Rod End Bolts
Material: Carbon steel, Alloy Steel, stainless steel SUS304, SUS316， High-Strength Steel
These rod end bolts are good for wet and corrosive environments—for maximum mounting flexibility, cut the fully threaded shaft to whatever length you need. Also known as swing bolts and eyebolts, rod end bolts have no moving parts. They're designed to make pivoting or hinge movements in applications that don't need to compensate for misalignment.
Brass rod end bolts resist corrosion in humid and wet environments, but not as well as stainless steel bolts. They're also not as strong. Often, brass bolts are chosen for their look, or to match other components, such as hinges.
303 and 304 stainless steel rod end bolts won't rust in humid, wet, and washdown environments. They're stronger than brass bolts and nearly as strong as steel. They will rust when exposed to salt water and chemicals, however. Black-oxide 303 stainless steel rod end bolts have a matte-black finish that adds some corrosion resistance but is mostly chosen for their looks.
17-4 PH stainless steel rod end bolts have the most tensile strength—a similar amount to high-strength alloy steel. They also won’t rust in humid, wet, and washdown environments. Even at high temperatures, they maintain their excellent strength and corrosion resistance, so they’re often used in automotive drive trains and heat exchangers. However, they’ll rust when exposed to salt water and chemicals.
316 stainless steel rod end bolts are our most corrosion-resistant, and they're nearly as strong as steel rod end bolts. Use them in areas with salt water, chlorine, and chemicals without worrying about rust.
ASTM rod end bolts meet a standard for the material.
DIN 444 rod end bolts meet an international standard for rod end dimensions.

Eye bolts, also known as fish-eye bolts, follow the DIN444 standard. Refined eyelet bolts, spherical surface is smooth, thread precision is high, and thread specifications for M6 to M64. The surface treatment of the knuckle bolts is: hot-dip galvanized, osmosis plating, white plating, color plating, and other anti-corrosion measures, high-strength bolts of the factory color of the boiled black hairy orchid, the material is: Q235, 45 #, 40Cr, 35CrMoA, stainless steel 304 and stainless steel 316 and so on.
Applications: filter self-rescuer, gas detection equipment, dust masks, mining raincoat, mine detonators, and knuckle bolts are widely used in low-temperature and high-pressure valves, pressure piping, fluid engineering, petroleum drilling equipment, oilfield equipment, and other fields, often in detachment of the connection of the occasion or tool, such as the valve industry, the use of folding bicycles, strollers, due to the ease of use of the knuckle bolts, fast, and supporting nuts The use of connecting the role of fastening, a wide range of applications. For the valve valve bolt, the sealing problem can not be ignored, because the valve run, leakage, dripping, and other phenomena come from here, the valve valve valve bolt must be quality assurance, to ensure the safety of use.
Marking examples: thread size d = M10, nominal length l = 100mm, performance grade 4.6, not by the surface treatment of the knuckle bolts marked: bolt DIN444 M10 × 100

Size Can also be According to the Customer's requirement for manufacturing， please check the detailed specification sheet details PDF, CAD, 175-176Page See more product details.

Packaging & Delivery and Packaging Details
1. Shrink film+wooden box
2. Cardboard box+pallet
3. Color box
4. As per the customer's request


Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size: 215*100*90CM, or as your request
