Locking Series&Eye Nut, Eye Screw Hook, U-shaped Screw Series

Quarter-Turn Retainer, Size 4, Stainless Steel Stainless Steel Starlock Washer Fasteners 0.16in ID 0.47in OD Internal Tooth Lock Washers Push-On Locking Speed Clip Fasteners

Material:Stainless steel SUS304.316,Carbon steel ,Brass

Share:

Product Specification

Toothed star lock washer is a commonly used fastening element, used in mechanical equipment to realize the fastening and fixing of parts. It has a certain special structure and working principle and has certain requirements for fastening requirements.
Toothed star lock washers are made of spring steel and have a certain degree of elasticity and hardness. This enables it to provide a certain fixing force through elastic deformation when subjected to external forces. At the same time, its surface presents a toothed structure, which can increase the friction between it and the parts, thus realizing a stronger fixing effect. When used, the toothed star lock washer needs to be selected according to the specific fastening requirements of the appropriate specifications and dimensions. Generally speaking, its inner diameter should match the outer diameter of the part to ensure that it can be correctly set into the part. At the same time, its outer diameter should be slightly larger than the hole diameter of the part to ensure that it can be fully expanded during assembly and close contact with the part, to realize a better fixing effect.


• Used to provide simple, rapid attachment of mating panels
• Corrects misalignment in panel mounting holes
• The nut is slid onto the panel edge and over the panel hole
• Parts self-retain in screw-receiving position
• Part does not turn as the screw is driven and will not freeze on screw threads
• Serviceable - parts disassemble easily and reliably
• Easy to assemble, requiring no special tools


Stainless steel Mil. Spec. Internal-Tooth Lock Washers, Choose these washers for their adherence to strict military standards for material and construction. Internal teeth dig into the screw head while the smooth outside edge won't snag objects. These washers provide greater vibration resistance than split lock washers. Use with fasteners that have small heads, such as fillister and cheese head screws.
Cadmium-plated steel washers are corrosion-resistant in wet environments.
Bronze washers are corrosion-resistant in wet environments, nonmagnetic, and electrically conductive.
410 stainless steel washers have excellent wear resistance.

Product Packaging

Packaging & Delivery and Packaging Details
1. Shrink film+wooden box
2. Cardboard box+pallet
3. Color box
4. As per the customer's request


Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8 , CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

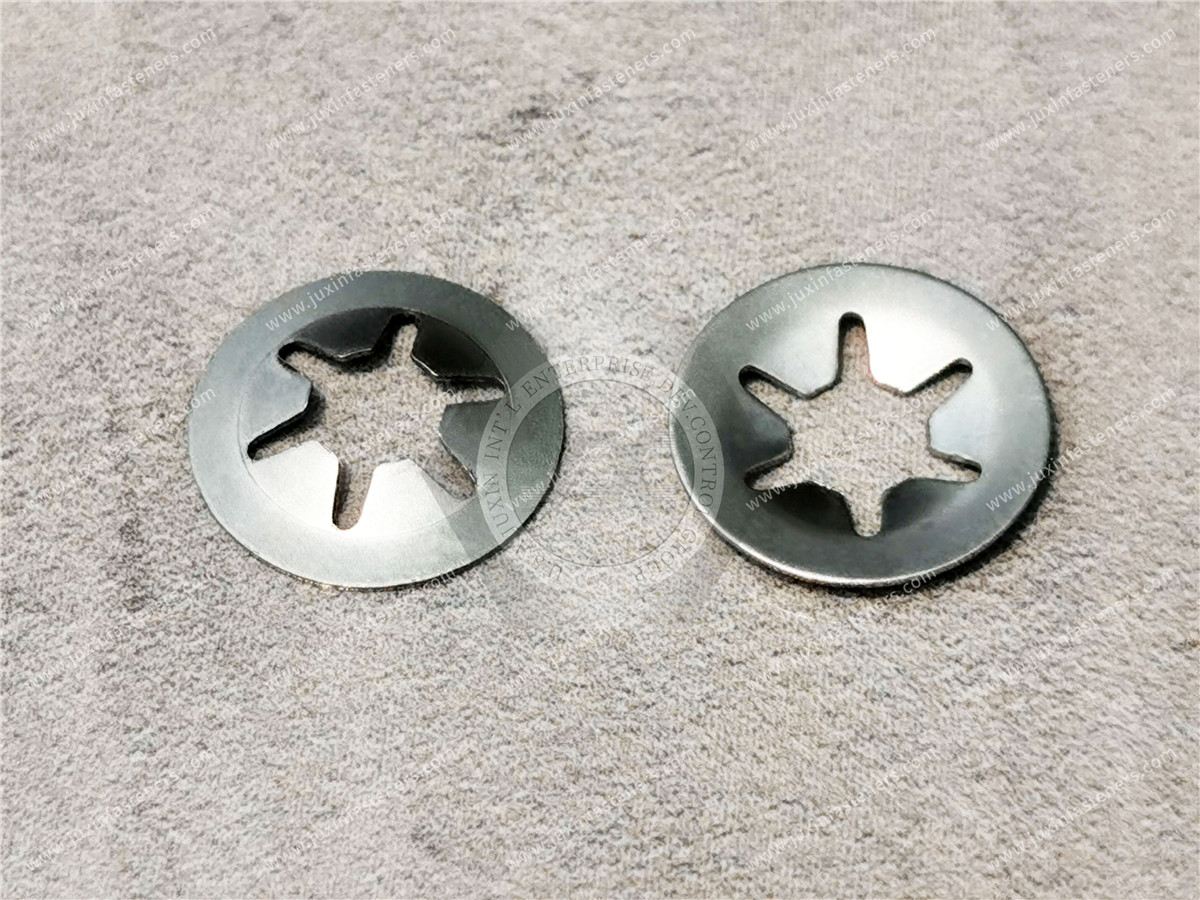

Quarter-Turn Retainer, Size 4, Stainless Steel Stainless Steel Starlock Washer Fasteners 0.16in ID 0.47in OD Internal Tooth Lock Washers Push-On Locking Speed Clip Fasteners
