JX-JF Bimetal Bushing

Metal & Bimetal – Bronze Bearings – Steel Bushings
Fiber Reinforced Composite bearings are available as bushes, plates, bearing segments, and special forms, depending on the particular material type.
Categories: Bimetal Bearings, Bush Bearing Material, oilless bearing, Self-lubricating Bearing
Tag: Oilless Bushing

High-Load Ultra-Low-Friction Oil-Embedded Sleeve Bearings， With extra iron and filled with oil containing slippery PTFE, these bearings support heavy loads that frequently start and stop along shafts. Startup friction causes a thin layer of oil to release onto the surface. Their high iron content also means they resist failing if their load suddenly and drastically increases, but they won’t run as fast as standard bearings. As sleeve bearings, they handle loads parallel to the shaft.
Note: Dynamic load capacity is the maximum load a bearing can withstand at a given shaft speed. If your application’s load and speed requirements are below the values listed, the bearing will work.

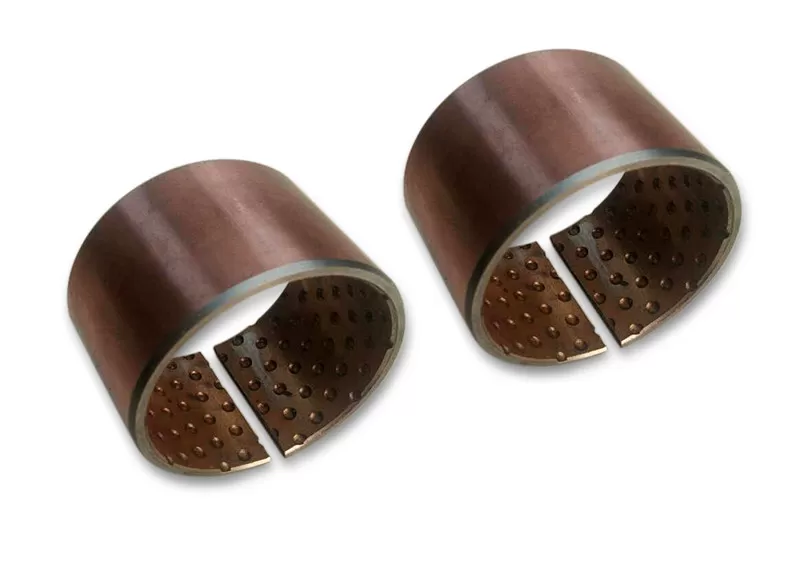

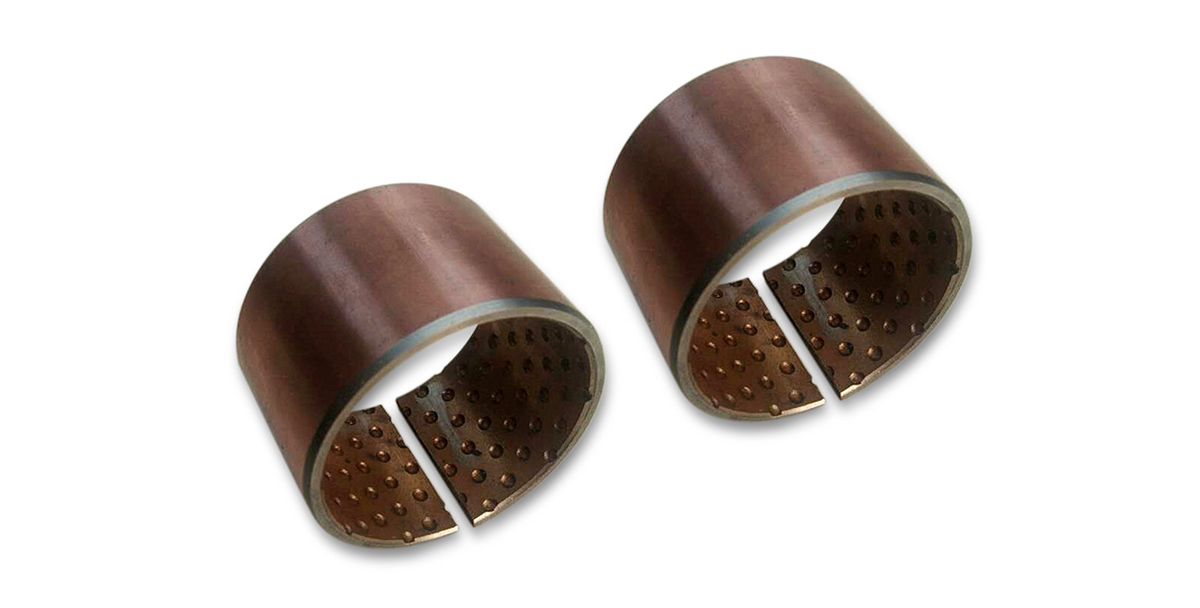

Bimetal bushing: Wrapped composite sliding bearing, Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets. Bimetallic bearing bushings are produced using high-quality composite material, low-carbon steel, and sintered lead-bronze alloy, which can stand high sliding rates.JF-800 bimetal bushing is based on steel and sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer. The strongest type of bimetal bushings and widely applied in so many fields. This type has the best performance within the range of Cu-Pb alloy constructed bushing. Therefore it has a wide application and is mostly suitable for where there is middle speed and high impact etc.Jf-800 bimetal bushing， A much cheaper but more efficient technology than nonferrous bushes.
JF800 bimetal bearing is a steel-copper alloy product made of CuPb10Sn10 or CuSn6Zn6Pb3 sintered on the surface of a low-carbon steel plate as a matrix material. The product is a double alloy bearing capacity of a strong, heavy truck balance bridge bushing, gasket; Driving wheel of bulldozer; and Automobile steel plate bushing, all use this product.

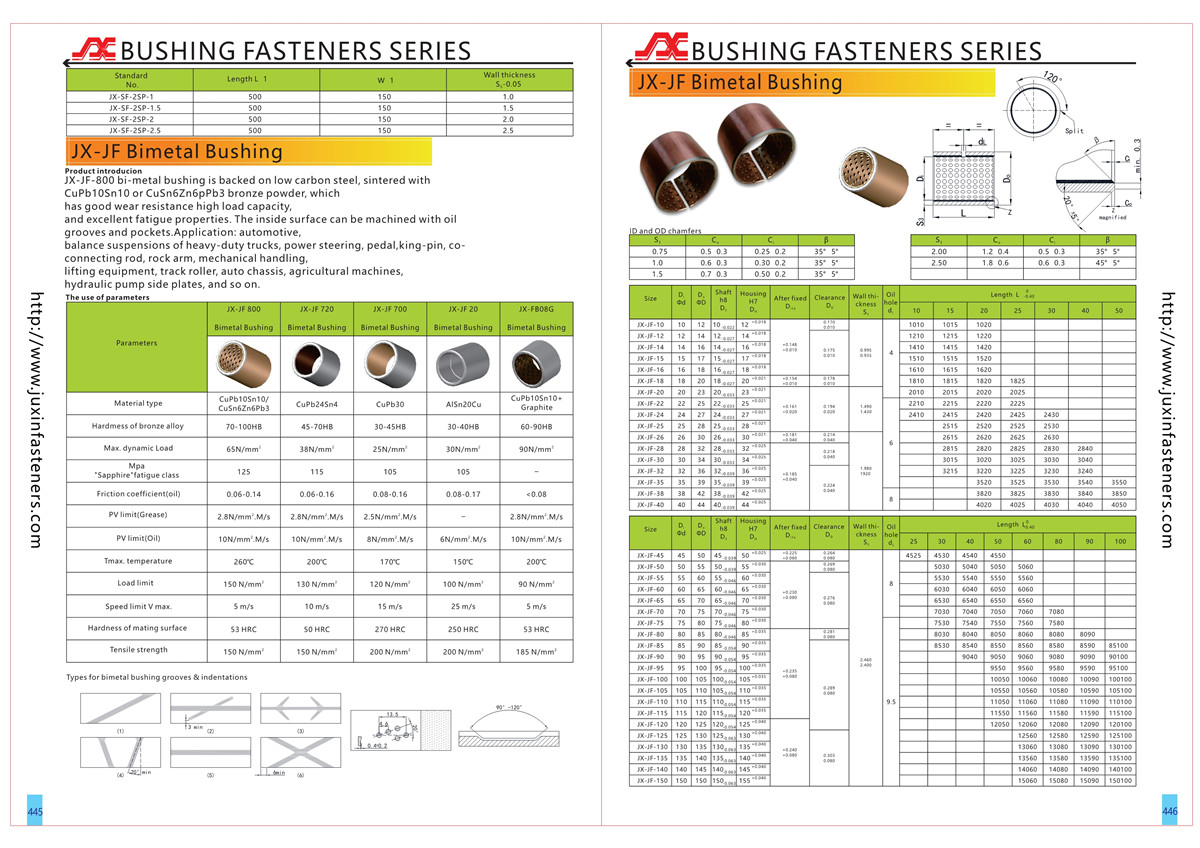

Size Can also be According to the Customer's requirement for manufacturing， please check the detailed specification sheet details PDF, CAD, 445-446 Page See more product details.
