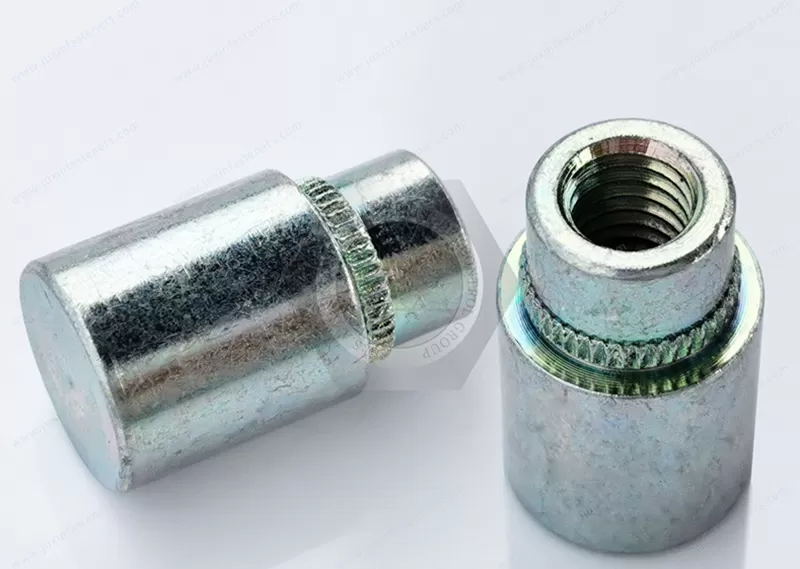

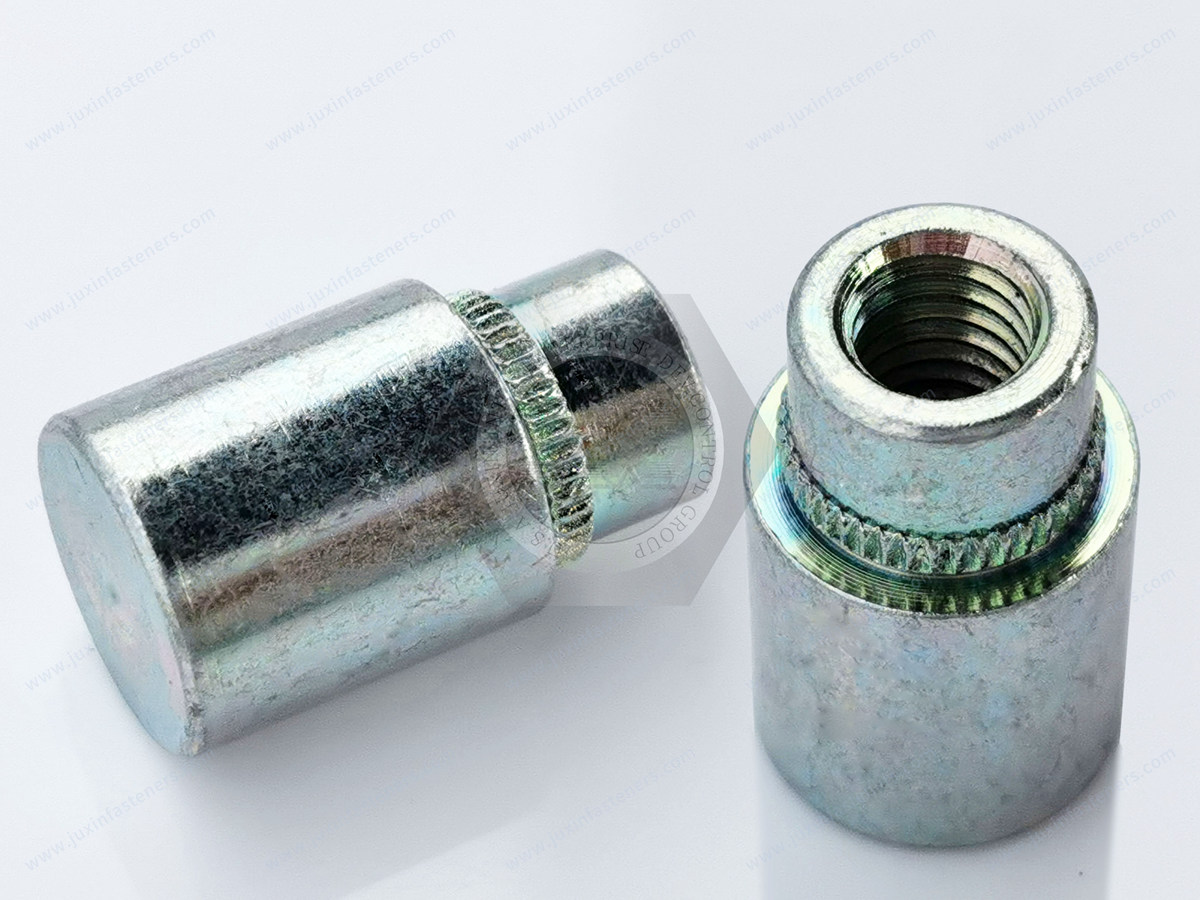

JX-22CNC536-M6-D12-20-ST, Carbon steel self-clinching standoff post for sheet metal structure design, surface treatment electroplating environmental protection ROHS color zinc

Advantages of self-clinching Nut Column:

Self-clinching nut column is widely used in the inlay process of metal plates, control boxes and power cabinets, and other product wall plates. The special characteristics of its structure, and assembly, just put the nut column into the hole of the metal plate, "riveting" operation to achieve, pressure self-clinching nut column has the following advantages

1. The length of the distance range is guaranteed, which greatly simplifies the assembly process and speeds up the production schedule of assembly pitch panels and accessories;

2. the back of the pressed rivet nut column plate remains completely embedded flat while ensuring that the head of the nut column is smooth with the plate plane;

3. the raw materials are made of free-cutting iron or free-cutting stainless steel;

Application of pressure rivet nut column:

1, the choice of the riveted nuts column, must be used according to the thickness of the plate, indeed size range, mild steel plate hardness must be less than 70RB, and stainless steel plate hardness must be less than 80RB.

2, the pressure riveting nut column cutting iron surface treatment, stainless steel to maintain the original color, the user can be ordered according to the needs of the model specifications in the table, but also according to the need for special customization.

3、Press rivet nut column plate hole size must be processed according to the tolerance size of 0-+0.075mm, it is recommended to punch the hole.

4, pressure riveting nut column installation must be achieved through the "riveting" operation, cut can not impact knocked into.

5, the riveting nut column material selection of stainless steel, the tail number with "S" to indicate.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
