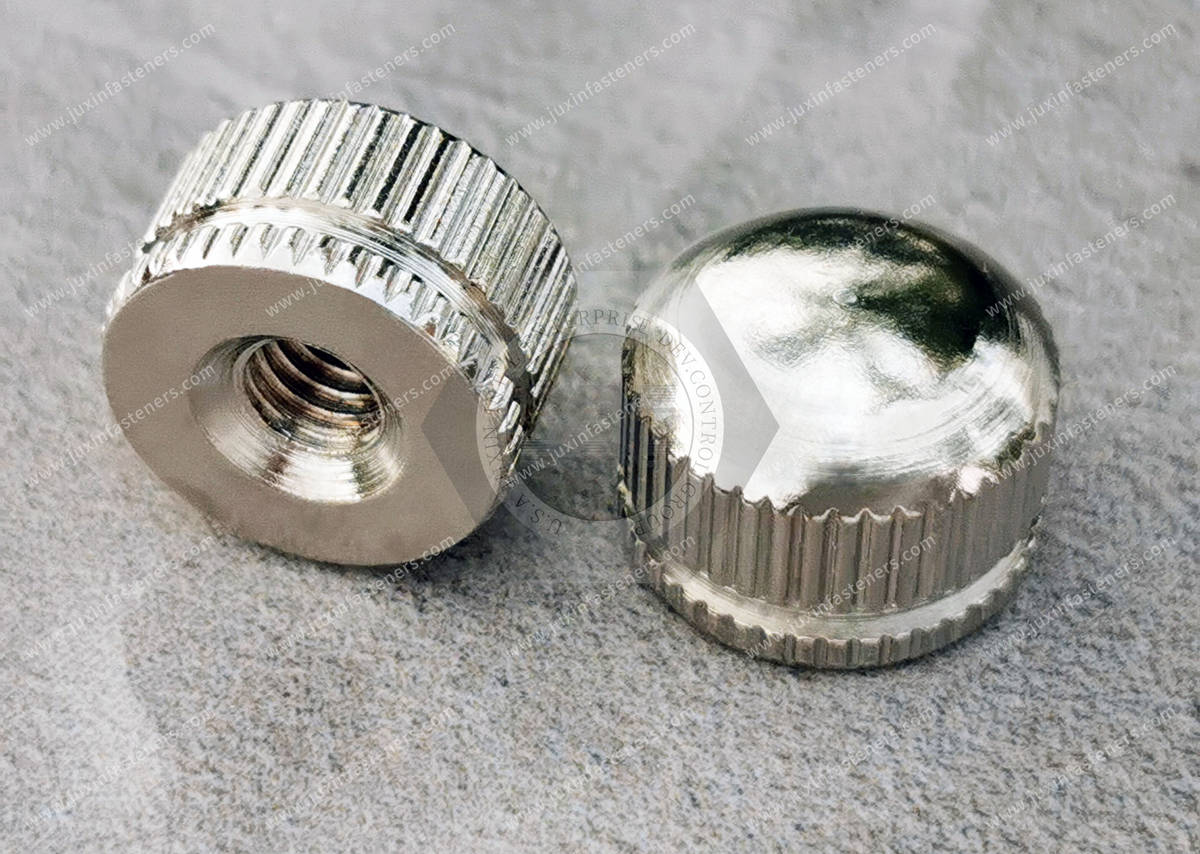

JX-21ZXG144-M4-H10.4-ST, Machining parts, CNC iron parts, stainless steel nickel-plated parts processing

Material: iron, aluminum, copper, stainless steel

Surface treatment: environmental protection white zinc, environmental protection black zinc, environmental protection color zinc, dacromet, anodic oxidation, tin, zinc-nickel alloy, etc.

Features and principles: convenient and fast operation, flexible use, easy disassembly, and wide application.

①, When L＜L ref., e=0, and the method of diameter ds is omitted

②, Material:

a) Steel, strength class (material): St, standard DIN EN 10087, DIN EN 10277-3 (these two material standards have been replaced by DIN EN ISO 683-4)

b) Stainless steel, strength class (material): A1, A2 according to standard DIN EN ISO 3506-1

c) Non-ferrous metals, strength class (material): CU3 according to standard DIN EN 28839

Differences in Three-Axis, Four-Axis, and Five-Axis CNC Milling:

1. Three-Axis - This is one of the most widely used techniques for machining parts. Standard CNC milling machines have three axes, with the cutting tool moving along the X, Y, and Z axes to mill the part.

2. Four-Axis - We use this type of milling machine to produce more complex parts. It incorporates an additional rotational motion on a vertical axis, allowing for greater flexibility and introducing more continuous machining capabilities.

3. Five-Axis - These machines are the most advanced and widely used type of CNC milling machine. Five-axis milling machines combine the three traditional axes with two additional degrees of motion. This is achieved by adding rotation to both the work table and the spindle.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
