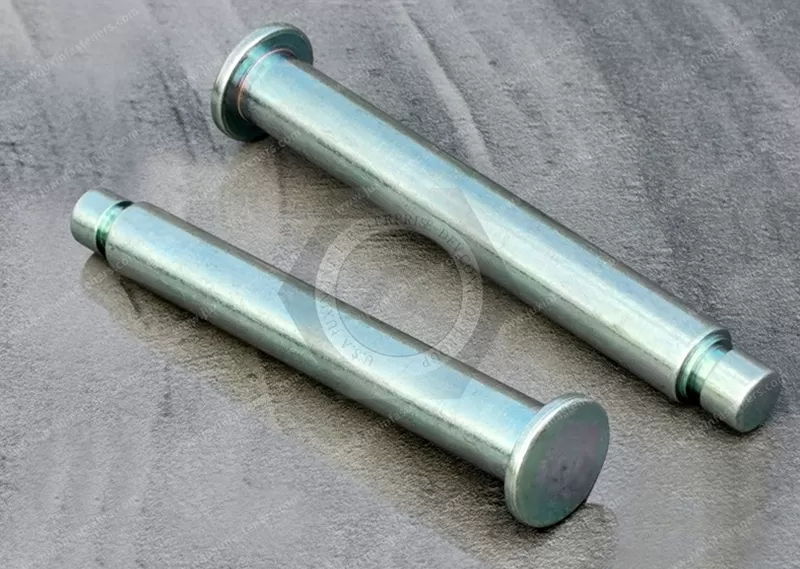

JX-21ZX136-ST, Carbon steel Captive Pins, Surface treatment environmental protection ROHS color zinc

Material: iron, aluminum, copper, stainless steel, nylon PA66, PTFE, etc.

Surface treatment: environmental protection white zinc, environmental protection black zinc, environmental protection color zinc, dacromet, anodic oxidation, tin, zinc-nickel alloy, etc.

Features and principles: convenient and fast operation, flexible use, easy disassembly, and wide application.Characteristics and Classification of Metal Shafts: A metal shaft is a cylindrical object that is inserted in the middle of a bearing, wheel, or gear. However, there are also a few cases where the shaft has a square shape. Here are the classifications and characteristics of shafts that have been compiled for you. We hope this information can be helpful!

1. Classification and Characteristics of Shafts

Commonly, shafts can be classified based on their structural shape as crankshafts, straight shafts, flexible shafts, solid shafts, hollow shafts, rigid shafts, and flexible shafts.

2. Straight shafts can be further categorized as follows:

Rotating shafts: These shafts bear both bending and torsional loads and are the most commonly used shafts in machinery, such as the shafts in various types of gear reducers.

3. Spindle shafts: These shafts are used to support rotating components and only bear bending loads without transmitting torque. Some spindle shafts rotate, such as the axles of railway vehicles, while others do not rotate, such as the shafts supporting pulleys.

4. Drive shafts: These shafts are primarily used to transmit torque without bearing bending loads, such as the long drive shafts in crane moving mechanisms or the drive shafts in automobiles.

Shafts are typically made of carbon steel or alloy steel. Other materials, such as ductile iron or alloy cast iron, can also be used. The working capacity of a shaft generally depends on its strength and rigidity, and for high-speed applications, it also depends on vibration stability.

①, When L＜L ref., e=0, and the method of diameter ds is omitted

②, Material:

a) Steel, strength class (material): St, standard DIN EN 10087, DIN EN 10277-3 (these two material standards have been replaced by DIN EN ISO 683-4)

b) Stainless steel, strength class (material): A1, A2 according to standard DIN EN ISO 3506-1

c) Non-ferrous metals, strength class (material): CU3 according to standard DIN EN 28839

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
