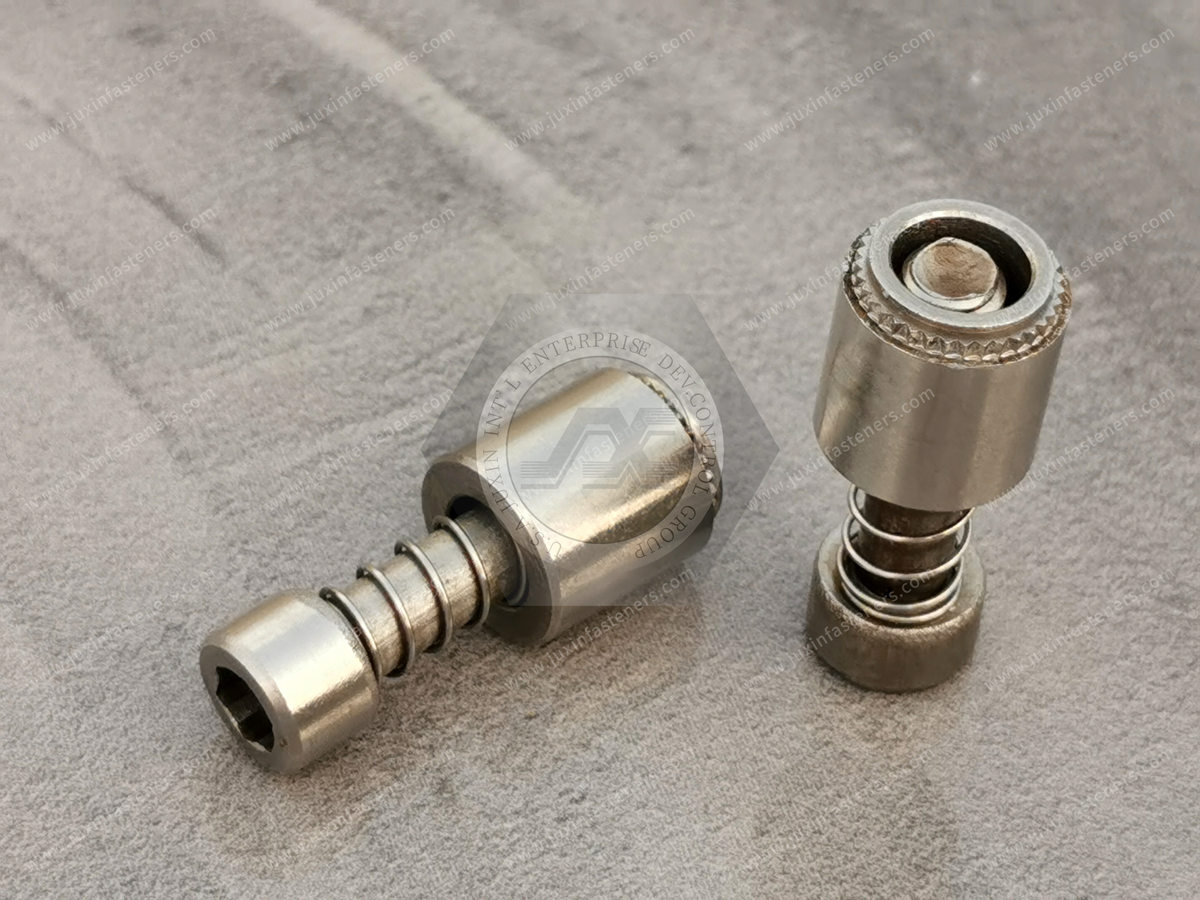

JX-21QJG211-M5-16-SS, Stainless steel Rounded Head Quarter-Turn Captive Panel Screws with Back Press-Fit Nut

Material: Stainless Steel

General Characteristics: Designed for machining, non-magnetic

Common Applications: Electronic hardware, automotive, aerospace, medical instruments, and many applications requiring corrosion resistance

Tolerances for 1/2" Dia: Cold finished+/- .002

These panel fasteners are tool-only to meet UL 1950 "service area access" requirements. Thread sizes #4 to 1/4" and M3 to M6.Fully concealed head for tool-only access.

Complies with UL 60950 standards.

Assorted screw lengths for most applications. Press these nuts into the backside of a panel in applications where you have access to both sides of the panel. Install with an arbor press or similar pressure tool. A quarter-turn locks and releases access panels, doors, and covers. The screw is held to the outer panel by a retainer. An installation tool (sold separately) is required to install the retainer. Nuts and screws have a zinc plating that provides corrosion resistance in wet environments. Length is measured from under the screw head.

Panel spring screws can be used for PCB board installation, taking up minimal space. The pressure-fitting sleeve of the thumb screw has knurled teeth and is pressed into the chassis or thin sheet hole (note: the drilling diameter of the thin sheet has certain requirements corresponding to the diameter of the spring screw's pressure teeth). It forms an exposed spring screw that can be hand-tightened on the other end (the hand-tightening end). Inside, there is a spring fixed, allowing the screw to move in and out relative to the other end of the thin sheet.

1. Panel spring screws are suitable for Stainless steel plates, metal steel plates, galvanized steel plates, and engineering installations.

Installation of metal curtain walls, metal lightweight partitions, and other indoor and outdoor installations.

General angle steel, channel steel, iron plates, and installation with other metal materials.

Assembly projects such as automobile carriages, container boxes, shipbuilding, and refrigeration equipment.

2. Characteristics of panel spring screws: Drilling and tapping in one step, providing strong fastening. Save construction time and improve work efficiency. E-1: STAINLESS STEEL SELF-DRILLING SCREWS

a. Low Carbon Steel: Low carbon steel, medium carbon steel, high carbon steel, and alloy steel.

b. SS-304: Stainless Steel 304.

Both 316 and SS-302 belong to stainless steel.

c. SS-302: Stainless Steel 302, with good structural toughness.

d. Aluminum 5052: Aluminum alloy 5052.

e. Brass: Brass.

f. Bronze: Bronze.

g. UNS C11000 Copper: Antimony copper.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
