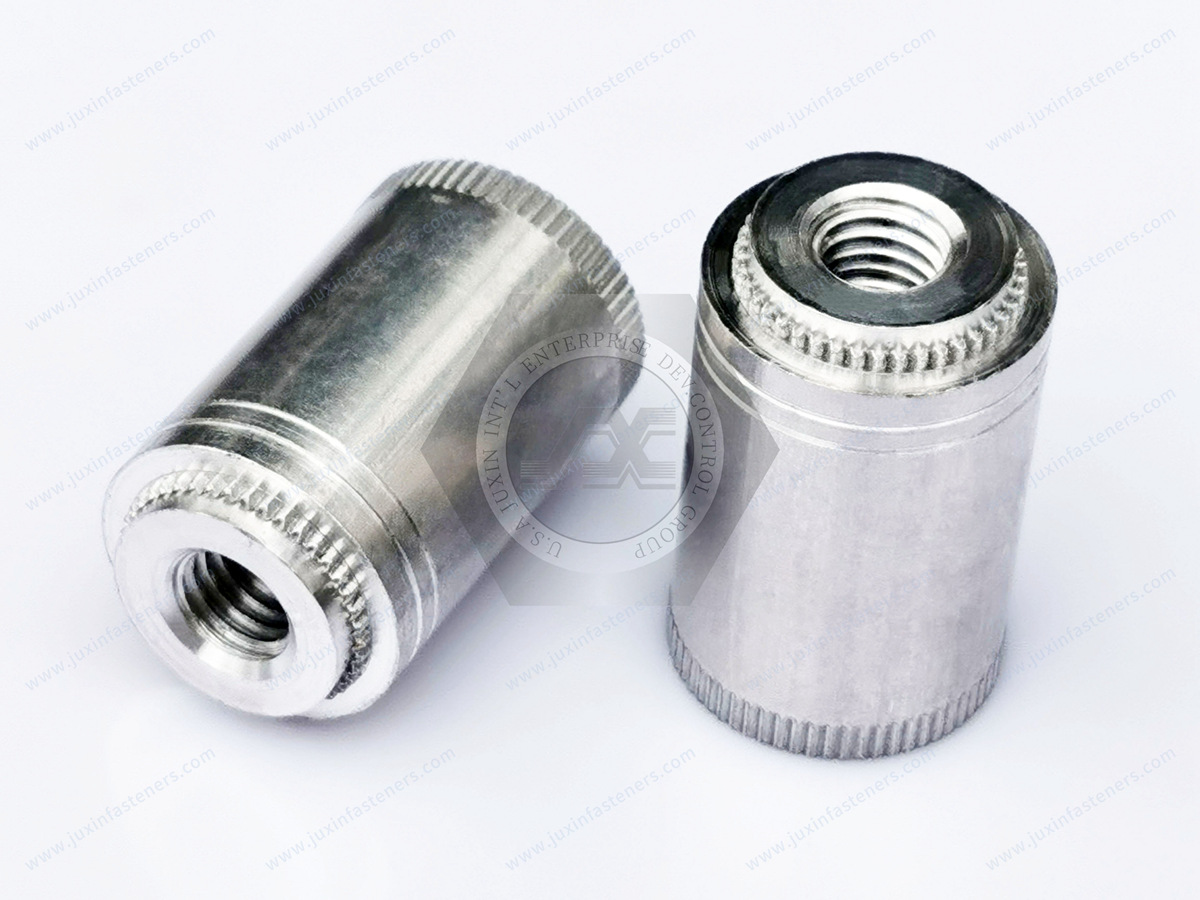

JX-21JG390-M6-23.5-AL, Aluminum machined self-clinching nuts parts for sound, stage lighting manufacturing equipment, surface treatment anodized

Alloys include 2011, 2024, 6061, 6262, 7075, and lead-free alloys 2033 and 6026. Our wide range of capabilities includes CNC milling, CNC turning, Swiss machining, and screw machining.Press riveting is a riveting method, which refers to the use of external pressure to change the plasticity of the material in the riveting project, so as to enter the special prefabricated slot in the riveted screw and nut structure, making a reliable connection between the parts.

Ordinary low-carbon steel, aluminum alloy plate, copper plate, and other materials, are usually used for crimping riveted nuts columns. Some materials that are too hard, such as stainless steel and high-carbon steel plates, etc., generally use special, high-hardness rivet nut columns, so in general riveting studs and riveting nuts sheet metal parts, rarely will use stainless steel. Pressure riveting screws and nuts and pressure riveting studs are the same, with less use of stainless steel. When riveting, the riveting die must be in place at one time, all the angular heads of the studs must be embedded in the plate, and the surface of the part must be consistent and flush so that the flatness of the plate and the verticality of the studs are good. When the stud length L≥30mm, according to the structural analysis and process requirements, the stud must be spot-welded and reinforced to avoid the tilt of the stud. When using stainless steel plates for riveting, the tolerance of the outer diameter size of the stud and the plate opening size must be guaranteed at ±0.05mm.

CNC machining is often the preferred method for manufacturing precision parts from aluminum. Aluminum is one of the most commonly used materials because it has many favorable physical properties. Aluminum is typically a soft, durable, non-magnetic metal with unique thermal and mechanical properties. Aluminum is commonly used in major power transmission lines and is an excellent material for heat dissipation applications, such as computers, which require rapid heat dissipation. Aluminum is also a good reflector of heat and visible light, making it very useful in lighting applications. Non-toxic. Aluminum is a non-toxic, odorless metal, making it widely used in pharmaceutical and food production. Specializing in the manufacture of standard and custom components from aluminum and many other materials.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
