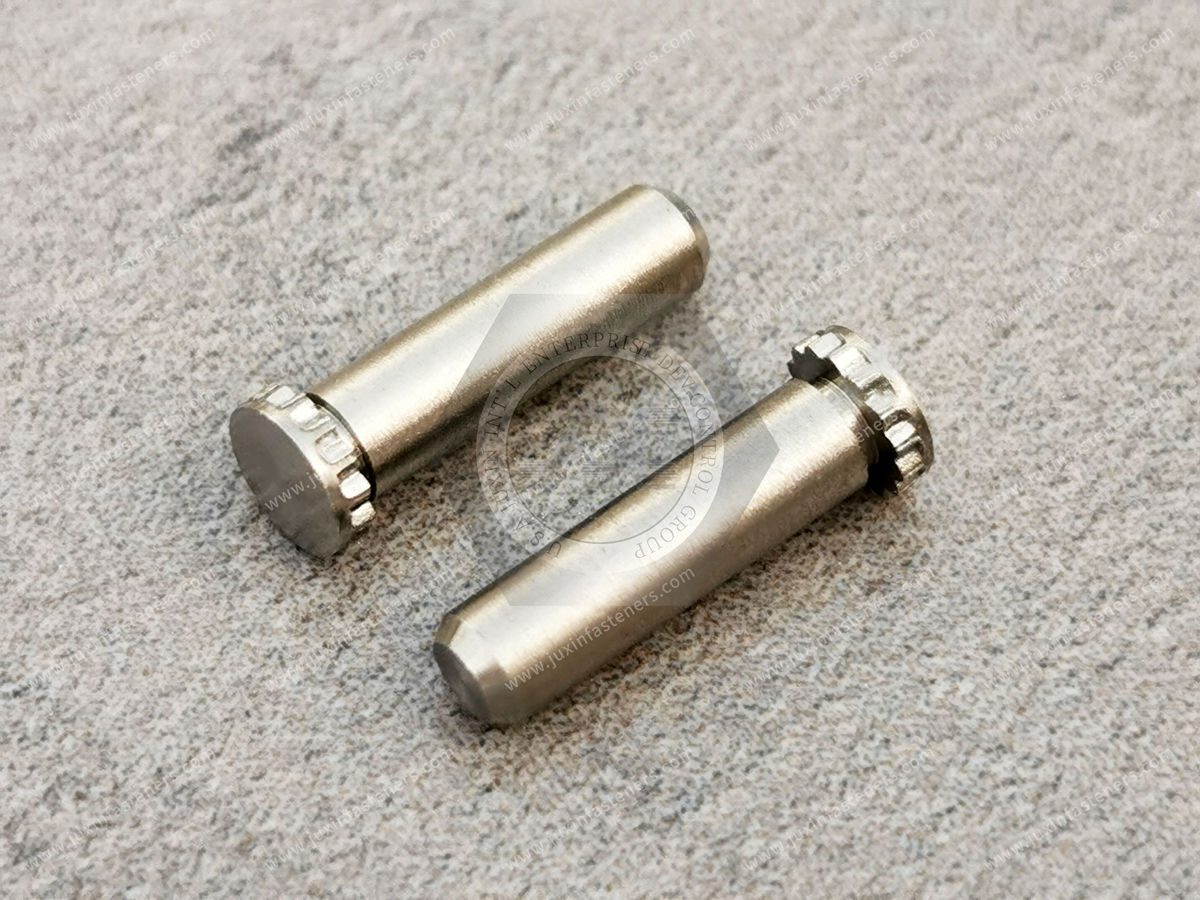

JX-21JG31-D3-20-SS, Stainless Steel Unthreaded Pins

Self-clinching pilot pins satisfy a wide range of positioning, pivot, and alignment applications, The chamfered end makes mating hole location easy. Self-clinching studs are installed by placing them in properly sized holes in the sheets and squeezing them into place with any standard press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and into the annular groove – creating a flush head assembly and securely locking the stud into the sheet with high torque-out and pushout resistances. Pilot Pins satisfy a wide range of positioning, pivot, and alignment applications. The chamfered end makes mating hole location easy

1. Flush-head for sheet thickness of .040” and greater.

2. Satisfies a wide range of positioning, pivot, and alignment applications.

3. Chamfered end makes mating hole location easy.

Manufacturing industrial equipment involves an adequate understanding of fundamental machining concepts and processes.

Juxin boasts a team of experts with unparalleled skills and experience that can help your business succeed in the industrial market. Our state-of-the-art technologies allow us to provide the best manufacturing solutions at competitive prices and shorter cycle times.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
