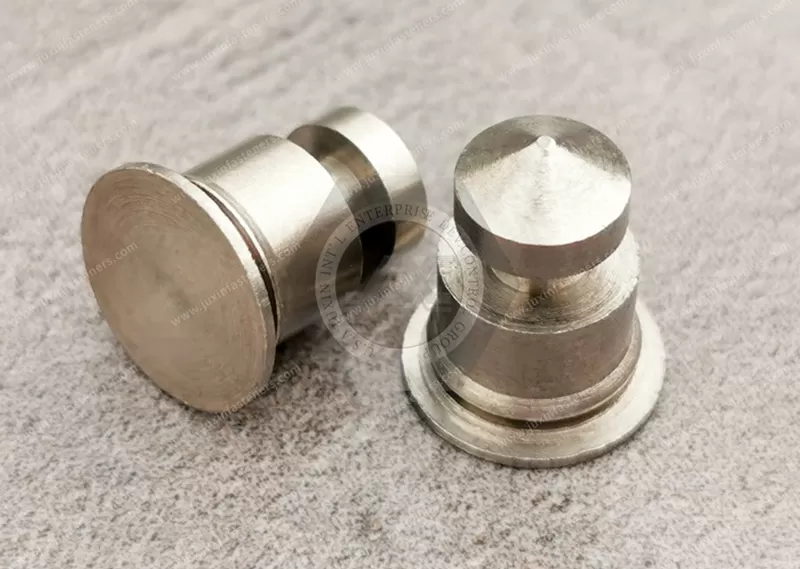

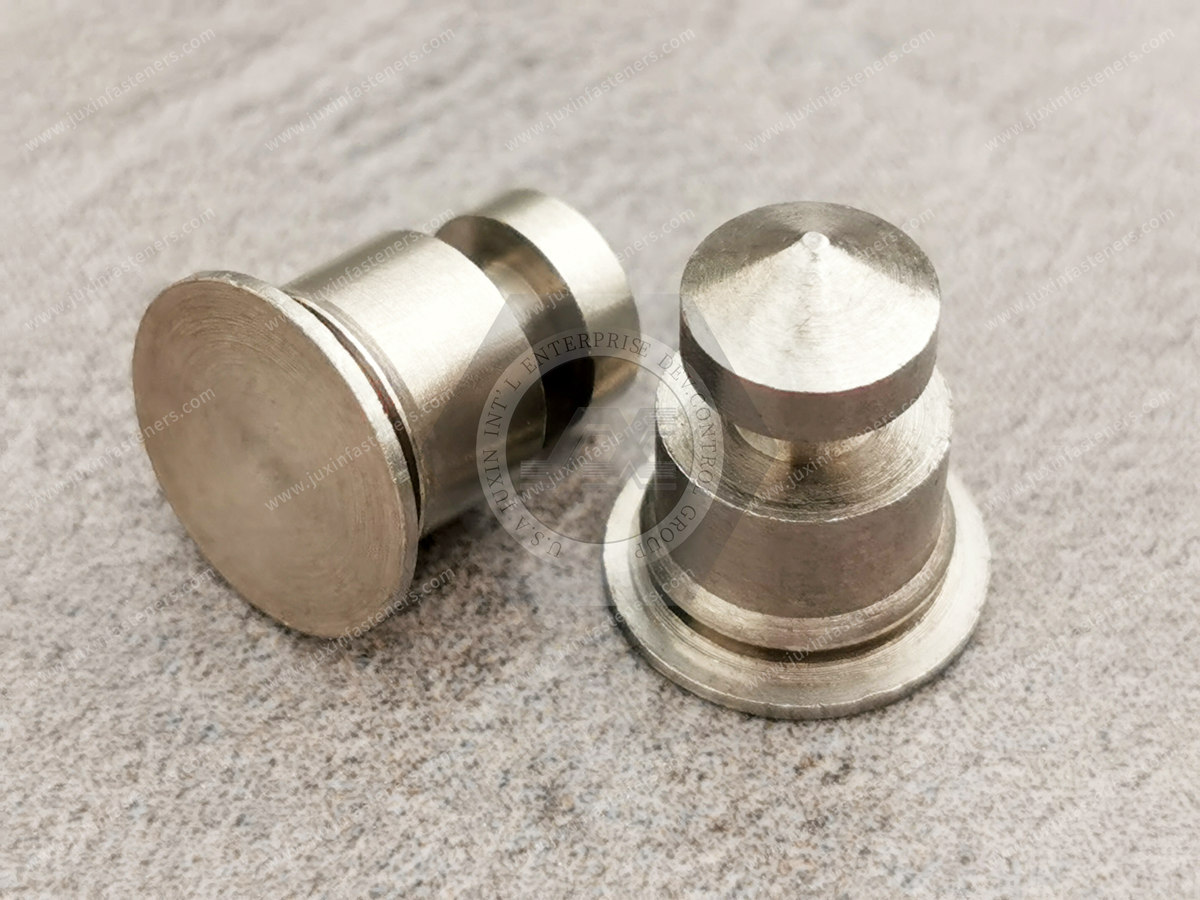

JX-21JG232-SKC-SS, Stainless steel parts centering machine processing&mechanical CNC lathe parts

Material: Steel copper, stainless steel

Surface treatment: environmental protection white zinc, environmental protection black zinc, environmental protection color zinc, dacromet, anodic oxidation, tin, zinc-nickel alloy, etc.

Features and principles: convenient and fast operation, flexible use, easy disassembly, and wide application.A locating pin is a fastener used to precisely orient or position the item, also known as a guide pin. Positioning pins have the effect of limiting the degrees of freedom of the item and are mainly used for position determination based on two-dimensional space. They are widely used in positioning devices, the center of rotation, and linear alignment.

Installation steps:

1、Punch the corresponding mounting holes on the thin plate.

2、Place the plate on the base of the tooling, and align the hole of the plate with the hole of the base.

3、Put the positioning pin into the opening of the sheet.

4、Set up the riveting parameters and press down evenly.

5、Rivet the positioning pin on the thin plate to complete the installation.

Positioning pins need to be chamfered during installation. The pin and the positioning hole have high precision and small clearance, and the chamfering is convenient for the pin to enter the positioning hole for guidance.

Designed so that a P.C. board or component can be quickly slipped into place and then removed sliding the board sideways and lifting it off. Standoffs are designed so that a PC board or panel can be quickly slipped into place and then removed from an assembly by simply sliding the board sideways and lifting it off. standoffs fasteners can save valuable time and dramatically reduce the amount of loose hardware required. Type JX-SKC can be used for spacing or hanging of replaceable components. Typically, several JX-SKC standoffs are used with one standard threaded standoff which accepts a screw to secure the board or component against any unwanted movement.

1. Type JX-SKC - Allows detachable spacing of two sheets

2. Clinch feature mounts fastener permanently into metal sheet.

3. Unique barrel design allows for quick attachment and detachment.

4. Head is flush with one side of the metal sheet.

5. Makes horizontal or vertical component mounting possible.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.
