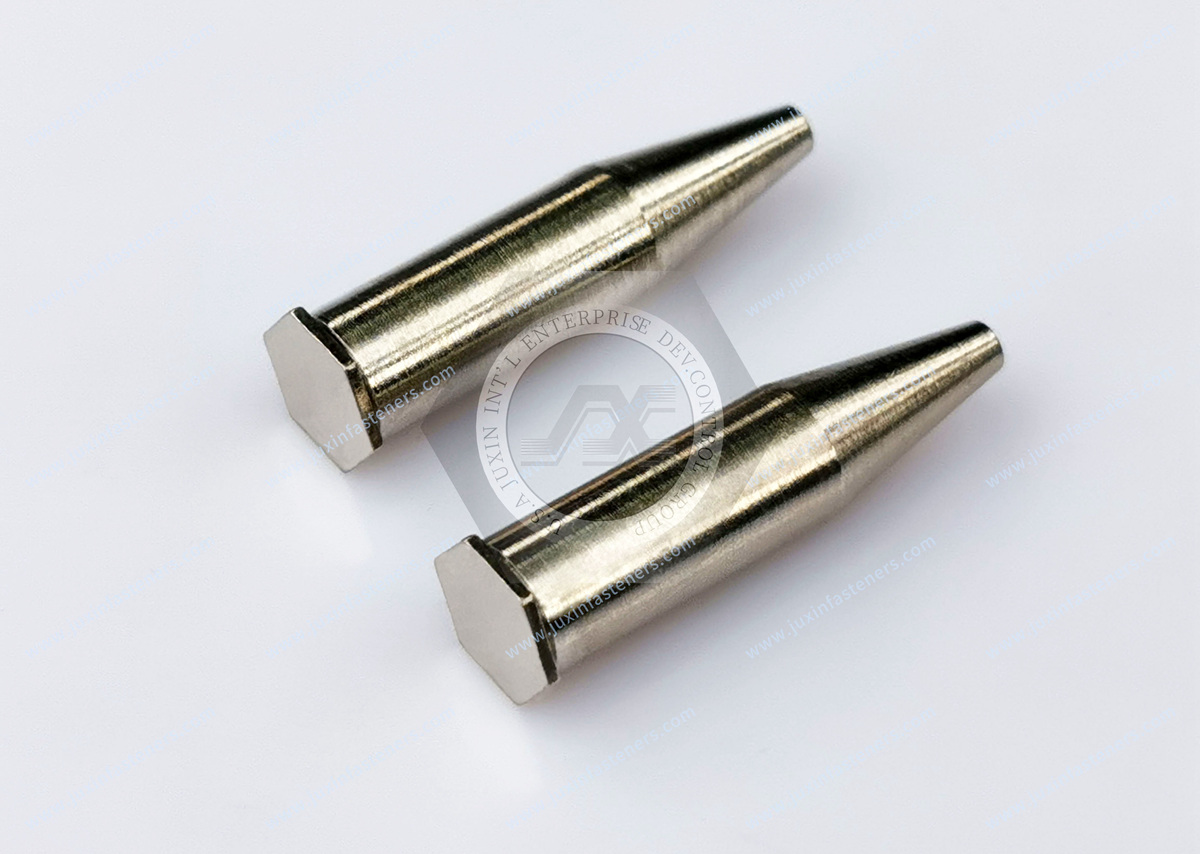

JX-21JG112-D5.5-D5-20.7-ST, Rotating shaft for agricultural tiller&stainless steel non-standard shaft parts processing, steel surface treatment electroplated with environmentally friendly nickel

Material: iron, aluminum, copper, stainless steel, nylon PA66, PTFE, etc.

Surface treatment: environmental protection white zinc, environmental protection black zinc, environmental protection color zinc, dacromet, anodic oxidation, tin, zinc-nickel alloy, etc.

Features and principles: convenient and fast operation, flexible use, easy disassembly, and wide application.

①, When L＜L ref., e=0, and the method of diameter ds is omitted

②, Material:

a) Steel, strength class (material): St, standard DIN EN 10087, DIN EN 10277-3 (these two material standards have been replaced by DIN EN ISO 683-4)

b) Stainless steel, strength class (material): A1, A2 according to standard DIN EN ISO 3506-1

c) Non-ferrous metals, strength class (material): CU3 according to standard DIN EN 28839

Environmentally friendly electroless nickel plating is aesthetically pleasing, durable, consume less electricity, saves energy, and reduces production costs. It can replace traditional electroplating processes and is suitable for coating protection of various mechanical parts, standard components, hardware decorations, and other products.

Environmentally friendly electroless nickel plating refers to the process of depositing a silver-white nickel-phosphorus alloy on the surface of the workpiece using a chemical immersion method. It provides a visually appealing and durable coating for various mechanical parts, standard components, hardware decorations, and other products. It can replace traditional electroplating processes.

The advantages are as follows:

Compared to electroplating, chemical plating does not require a large amount of electricity. The workpiece is immersed in the plating solution for a certain period of time to achieve the desired plating effect, saving a significant amount of energy and reducing product costs.

1. The coating is a nickel-phosphorus alloy that is dense, durable, and has high hardness. It can achieve comparable results to traditional electroplating. It exhibits better corrosion resistance than traditional electroplating. (Microstructure: amorphous alloy, non-magnetic; melting point: 860-880°C; density: 7.8g/cm3; hardness: as-plated 550HV, can reach 1200HV with appropriate treatment)

2. High efficiency: The plating thickness can reach 15-18 micrometers per hour for typical workpieces. (The plating rate depends on the concentration of the plating solution and the surface roughness of the workpiece.) It significantly improves work efficiency compared to traditional electroplating processes.

3. The coating is distributed evenly without being affected by current distribution, as seen in conventional electroplating. Even complex geometric shapes can achieve a uniform coating, ensuring the quality of the workpiece.

It is safe, non-toxic, and environmentally friendly. The plating solution can be reused, eliminating the discharge of waste liquid. It greatly improves the working environment for employees and saves substantial environmental management costs.

It is easy to use. Electroplating equipment is not required, and the plating can be done using common plastic or fiberglass containers.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
