Blind Rivets

Close End Dome Head Aluminum Blind Rivets

(A) Material: Aluminum Body+Steel Mandrel Domed Head Close End

(B) Material: Aluminum Large Flange Body+Steel Mandrel Domed Head Large Flange Close End

Share:

Product Specification

(A) Material:

1. Aluminum Body+Steel Mandrel Domed Head Close End

2. Aluminum Body+Aluminum Mandrel Domed Head Close End


(B) Material:

1. Aluminum Large Flange Body+Steel Mandrel Domed Head Large Flange Close End

2. Aluminum Large Flange Body+Aluminum Mandrel Domed Head Large Flange Close End


Name: Aluminum Domed Head Sealing Blind Rivets


Lightweight and nonmagnetic, these rivets have good corrosion resistance. The body deforms to seal the bottom of the rivet and prevent water and air from passing through. They provide higher shear and tensile strengths than standard blind rivets and the portion of the mandrel that's retained inside the rivet after installation won't loosen over time and fall out. Use blind rivets to fasten material when you only have access to one side. A low-profile domed head creates a finished appearance. The combined thickness of the material must fall within the rivet's material thickness range. Shear strength is the force it takes to break a rivet from the side, and tensile strength is the pull a rivet can withstand without breaking. Joint strength is also affected by rivet spacing and hole size. A blind rivet tool (sold separately) with a nosepiece that matches the rivet's diameter is required for installation.


Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 103-104Page See more product details.

Product Pictures

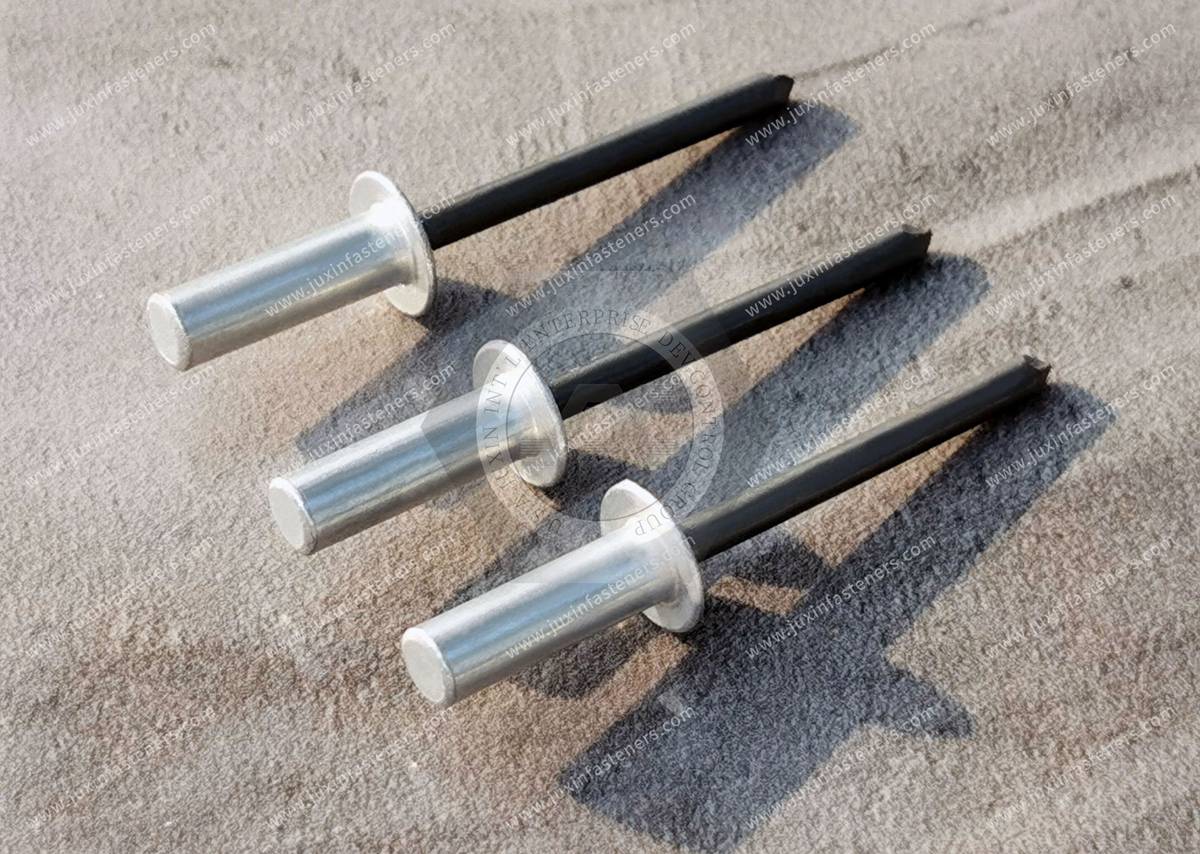

Close End Dome Head Aluminum Blind Rivets


Close End Dome Head Aluminum Blind Rivets
