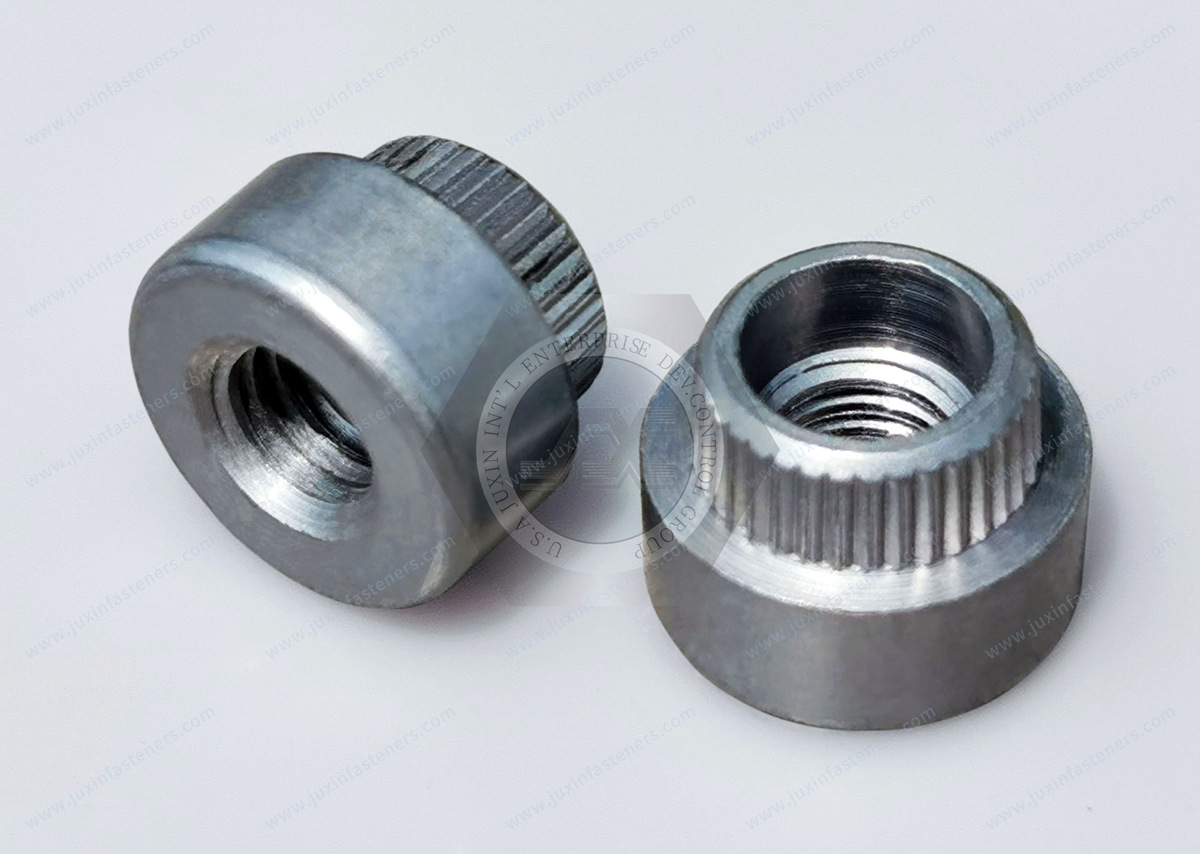

JX-21QJG341-M6-4-ST, Self-clinching Fasteners for Sheet Metal, An easy-to-install, self-clinching fastener that provides load-carrying threads in metal sheets too thin to be tapped. Automotive machine parts, riveting fasteners nuts for metal

Material: 11SMnPB30 +C, Surface treatment: natural color zinc-nickel alloy 720 hours, Auto parts mainly include engine parts, transmission system parts, brake system parts, steering system parts, driving system parts, and electrical instrument parts. Automotive parts: throttle body, engine, engine assembly, oil pump, injector, tensioner, cylinder block, shaft tile, water pump, oil injection, gasket, camshaft, valve, crankshaft, connecting rod assembly, piston, belt, muffler, carburetor, fuel tank, water tank, fan, oil seal, radiator, filter.

Technical requirements:

1. Material: DIN EN 10277-3 35S20 +C Surface treatment: GS 90010-1 ZNNIV SI;

2. Riveting depth: 4.5 ± 0.3mm

3. No tolerance: soil 0.3;

4. Pull out force>5kN

11SMnPb30 German standard implementation standard DIN EN 10087-1999 Hot-rolled bar and wire delivery technical conditions, 11SMnPb30 is a free-cutting structural steel, which is easy to be cut by (turning, milling, drawing, planing, drilling, etc.), also known as Steel for automatic machine tool processing, referred to as automatic steel. It is produced to adapt to mechanical processing automation and assembly line production. This type of steel can be cut with a higher cutting speed and a deeper cutting amount, and the cutting resistance is reduced due to the easy-cutting elements added to the steel, and the cutting edge is lubricated due to the characteristics of the added element itself and the compound formed. The role of the part makes the chips easy to break and reduces wear, thereby improving the finish and precision of the processed parts, and improving the tool life and production efficiency.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
