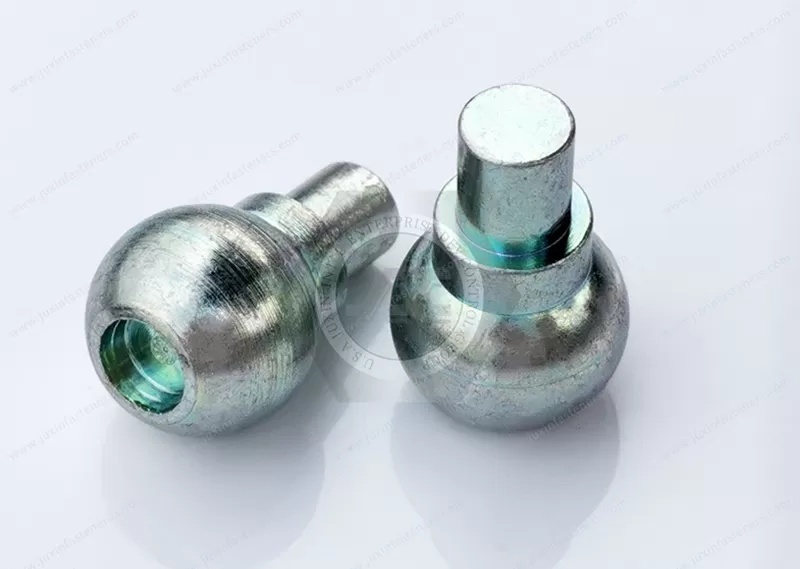

JX-21QJG275-D14-D6.5-ST, Carbon steel Ball Stud Pin for Automobile

Product Name: Ball Stud Pin for Automobile

1. The product has no flash and burr

2. The product does not note that the full chamfer is R0.3

3. Surface coating: the surface is electroplated with environmentally friendly colored zinc, and there is no red rust in the neutral fog test for 96 hours after completion, and the performance rating of GB/T6461-2002 should not be lower than 10/10sC;Specialized in: radial and rod-end joint bearings, wipers, metal products manufacturing, special machine design, tooling production, etc. Mainly used in automobile chassis steering connections, go-karts, lawnmowers, and agricultural machinery parts. The ball head, also known as the ball hinge, or ball pin, is one of the key components to ensure the stability of car handling, smoothness, comfort, and safety of driving, can make the car maintain the correct and accurate driving direction; on the other hand, it can also play a role in transmitting the manipulation of the directional force.

The ball pin, as the core part of the swing arm ball pin assembly, consists of the ball head, neck, big end, taper, thread, etc. During the process of ball pin processing, it needs to go through a turning rod, a turning ball, a flaw detection, a drilling cotter hole, a chamfering, a rolling light, a rolling wire, a cleaning, and other work seats. Among them, the turning rod uses the ball pin hand bad head platform positioning, using the drive (live) top tightening, complete the processing of the neck of the ball pin rod, large end, taper, thread bottom diameter, turning ball (Figure 2): ball pin turning ball process, the use of ball pin rod transition angle for positioning, complete the processing of the ball head round ball; clamping positioning process, you need to manually squeeze the ball pin, to ensure that the workpiece positioning surface and the workpiece positioning surface effective contact The process requires a high level of operation of the personnel. The process is unstable because of repeated clamping and positioning. The coaxially between the ball head and the rod part of the ball pin is prone to overlap, and the distance from the ball center to the big end cannot be guaranteed, so the product processing process is unstable.

Material: Steel 1045 Machined Parts

Cox Manufacturing has a reputation for machining quality parts from 1045 Steel. We can machine intricate parts on our CNC Swiss machines and CNC turning centers.

Steel alloy 1045 is a versatile medium carbon alloy, ideal for parts that require strength and impact resistance. Due to its higher carbon content, it has higher tensile strength. 1045 has excellent ductility and toughness.1045 has a machining cost factor of 3.0 when compared to steel 12L14. It is not ideal for welding or forming due to its higher carbon content. 1045 responds to heat treatment extremely well, but it is not ideal for case hardening.

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Packaging & Delivery and Packaging Details

1. Shrink film+wooden box

2. Cardboard box+pallet

3. Color box

4. As per the customer's request
